Removing Valve Spring Retainers

To remove the Valve Spring Retainers (VSR), I rented a Valve Spring Compressor Tool from Advance Auto Parts. I actually had to purchase it for $50 and then I will get a FULL refund if returned within 45 Days. However the compressor won't fit into the pocket areas to remove the retainers. So, I made a Stainless Steel Extension Adaptor (and a Nylon one) witch worked very well.
Tools needed to Change Valve Spring Retainers
Tools needed to Change Valve Spring Retainers
Valve Spring Compressor Tool from Advance Auto Parts
Valve Spring Compressor Tool from Advance Auto Parts

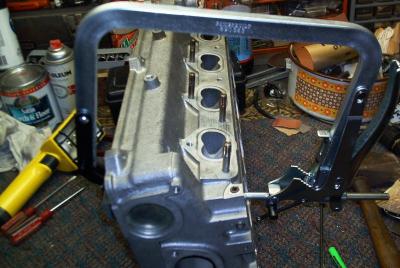

Head VSR 1.jpg
Head VSR 1.jpg

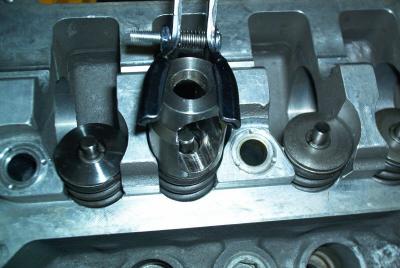

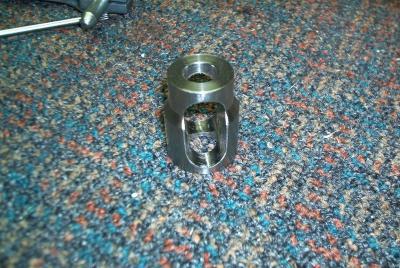

Special TIII VSR Adaptor
Special TIII VSR Adaptor
Special TIII VSR Adaptor
Special TIII VSR Adaptor

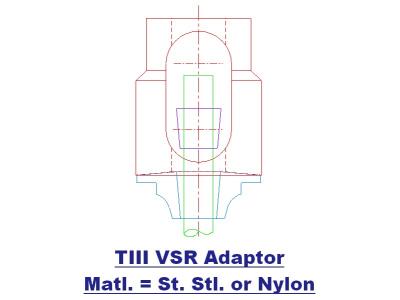

TIII VSR Adaptor Assy.jpg
TIII VSR Adaptor Assy.jpg

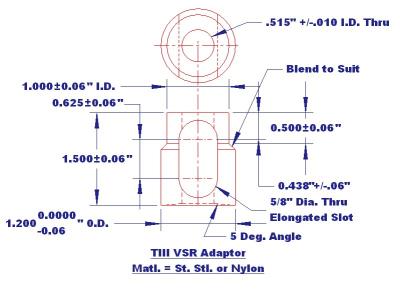

TIII VSR Adaptor.jpg
TIII VSR Adaptor.jpg
