Overhead Console Trip Computer

The Console is Original Equipment, but I added the Electronic Trip Computer, (FOR A 2002 Dakota) Part Number 56049050AE (list Price $265). No wiring harness exists in the roof area if the vehicle did not come with a trip computer. I purchased a harness (Part Number 4760108-AH List WAS $44.70 when I purchased. I have since found that the price jumped over 10 fold to over $500) from my local Dodge Parts Guy. I had my son (a Auto Electrical Tech by trade) wire in the harness.

I first tried a Trip Computer from a 99 Chrysler 300M. The only thing I could ever get to work was the Homelink and the compass. You MUST have a Overhead Trip Computer from the same year/make/model vehicle. If the Overhead Trip Computer is from a different year/make/model vehicle the Trip Computer doesn't/can't talk to the ECU.
Overhead Console w/Trip Computer
Overhead Console w/Trip Computer		 Original Console

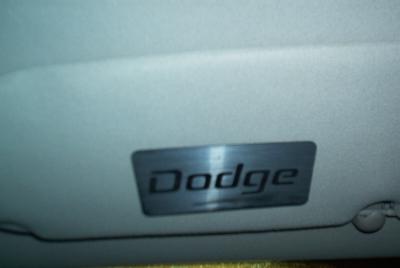

Original Console		 Dodge Visor Plaques

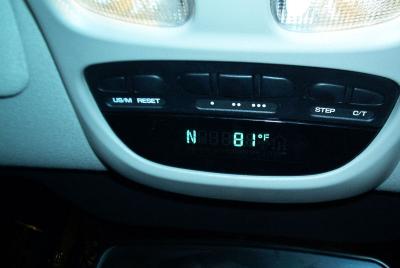

Dodge Visor Plaques		 Compass & Outside Temperature
Compass & Outside Temperature

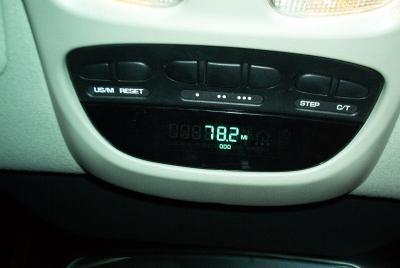

Miles since last Reset
Miles since last Reset		 Elapsed Time since last Reset
Elapsed Time since last Reset		 Avg. MPG

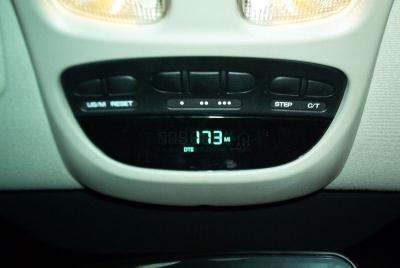

Avg. MPG		 Distance To Empty
Distance To Empty
Instant MPG's
Instant MPG's		 1999 300M Overhead Console (9 3/4 Front to back)

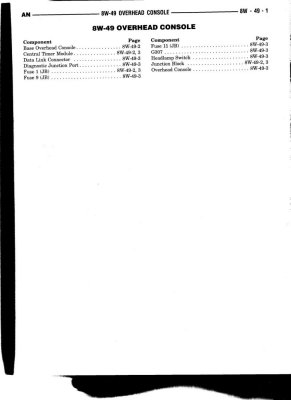

1999 300M Overhead Console (9 3/4" Front to back)		 02 FSM - Overhead Console Wiring 8W-49-1
02 FSM - Overhead Console Wiring 8W-49-1		 02 FSM - Overhead Console Wiring 8W-49-2
02 FSM - Overhead Console Wiring 8W-49-2

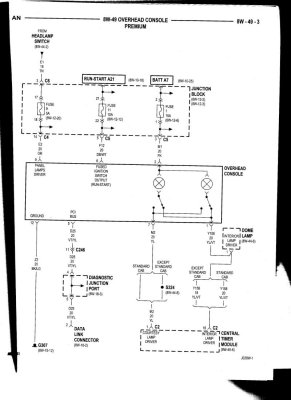

02 FSM - Overhead Console Wiring 8W-49-3
02 FSM - Overhead Console Wiring 8W-49-3

comment | share
Steve 04-Aug-2012 06:38
I'd like to know what needs to happen to get the lights behind the button labels to light up. Mine don't light!

@Ed: Old, but there's a screw in the front, and then you pull the entire console straight down.
ED BERGLAR 19-Oct-2011 23:52
ANY ONE KNOW NHOW TO TAKE CONSOLE DOWN CANT FIND ANY SCREWS
Guest 11-May-2008 01:46
I used your posted wiring diagram to install an OTIS in my 2003 dakota. Thank you for posting the diagram, all wire colors matched. I wired it into the back of the fuse box.
Orlando 01-Aug-2007 10:28
So do you mean that for a 2004 dakota with a 3.7 V6, i must have the exact part number that goes with that specific model ? I bid on a older console from that the guy posted it as "fits 97 through 03 models" I guess it will fit but the computer readings for the MPG may not be in accordance with that engine since those years they had 5.2, 5.9, and later the 4.7 but the 3.7 came out from 2004 -on.
CL350RR 20-Jan-2007 18:24
The harness 4760108-AH lists for over $500 now at the local dealer and online. there must be a source of an aftermarket plug that will fit these things
J Ballard 19-Dec-2006 20:04
Does any one have the wiring connector pin signal names so a home made harness can be made?
JB
Sherrie Haugen 23-Oct-2006 17:02
I was wondering where you purchased your wiring harness for $44.70.
biagio 18-Sep-2006 05:30
hi ralph, good job on doing it, im in the same boat. i just purchased a trip comp from the dealer Part# 5604578ab. looks the same as yours why a diff in numbers. anyways the harness that you got was it long to go all the way near the fuse box. and where are the connections made. can you get the info off anywhere. thanks in advance
Andrew Delaney 05-Feb-2006 05:31
hey, i just got that console for my 01 durango, I had 2 little lights before, but im trying to get the new one put up right, the wiring harness is different and i could go back to the junkyard and get the right one but before i do i wanted to know how hard it is to run the new wires. do they plug right in somewhere? hard to run under the headliner/ A piller? any other snags you ran into when doing this? thanks for your time. -Andrew
