2.0/2.4 DOHC Head Cut Aways

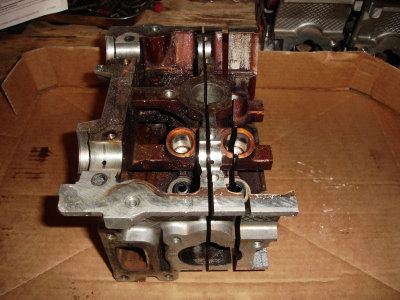

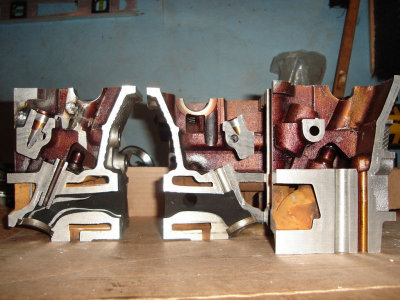

This section was cut vertically into 2 layers lengthwise along the port.	Inside layer down the center of the cylinder with the intake port on the outsides.	Outside layer down the center of the valve with the intake port on the outsides.	This section was cut horizontally through the center of the port manifold face. It was stepped to get the different heights for
Intake ports are on the bottom	This section was cut verticall perpendicular to the ports in 2 locations for intake and exhaust.	Intake port outside cut.	Intake port intside cut.
Exhaust port inside cut.	Exhaust port outside cut.	This section was cut diagonally along the port length from approximately the center of the valve to the center of the port manif	Intake port.
Exhaust port. Sorry about the screw up but you can definately see the shape. Just ignore the clean spots.
