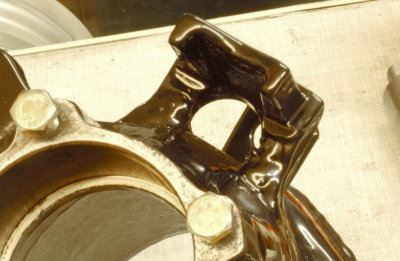

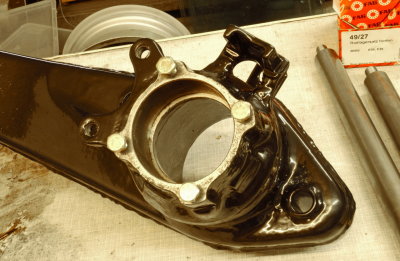

The photos in this gallery shows how Benno modified the trailing arm of his 914 to duplicate what the Porsche factory did in their GT Rally cars. Nice job! Thank you for all the photos Benno. This is helpful.
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 1
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 1		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 2
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 2		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 3
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 3		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 4
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 4		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 5
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 5		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 6
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 6
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 7
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 7		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 8
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 8		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 9
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 9		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 10
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 10		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 11
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 11		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 12
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 12
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 13
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 13		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 14
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 14		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 15
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 15		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 16
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 16		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 17
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 17		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 18
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 18
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 19
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 19		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 20
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 20		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 21
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 21		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 22
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 22		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 23
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 23		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 24
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 24
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 25

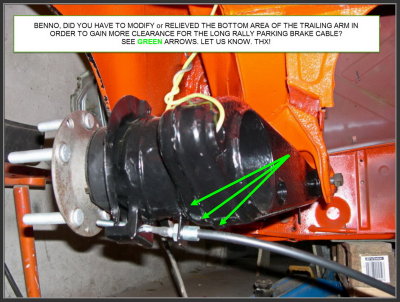

914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 25		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Trailing Arm Modification Question we have - Photo 26
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Trailing Arm Modification Question we have - Photo 26		 914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 27
914-6 GT Rally Brake Modification (Benno Stabernack, DE) Photo 27		 914-6 GT O.N.S. Collector's Cards
914-6 GT O.N.S. Collector's Cards

comment | share
914-6 GT04-Nov-2015 17:10
-----Original Message-----
From: Benno Stabernack
Sent: Wednesday, November 4, 2015 5:52 AM
To: Armando Serrano
Subject: Re: 914-6 GT Rally Brake Modification - Factory...

Dear Armando,

sorry for the late reply, I've been very busy in the last days, so no time left over for my beloved hobby.

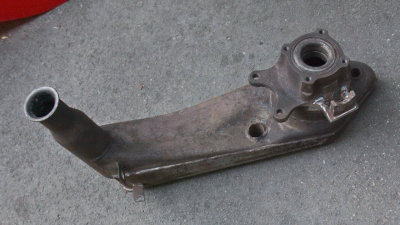

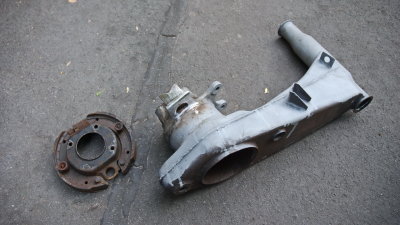

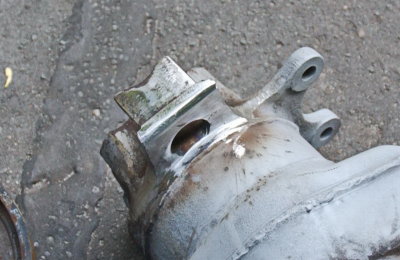

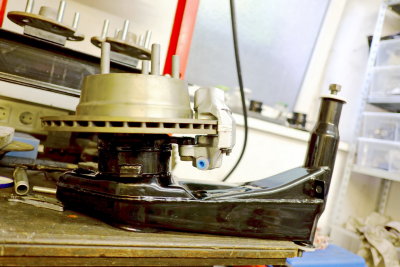

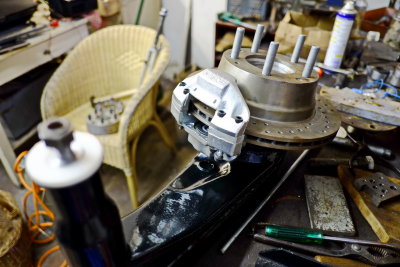

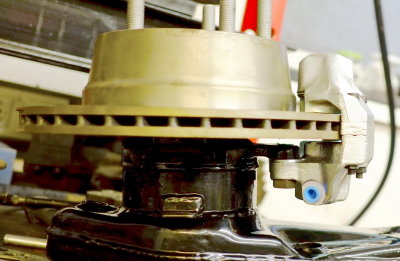

As promised I send you some pictures of my 9146gt rally brake modification. What I essentially did is that I've converted the original 914 rear
trailing arm, that is works identical to the 911 rear trailing arm regarding the hand brake.

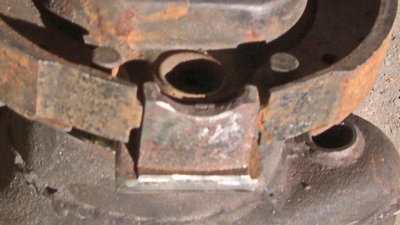

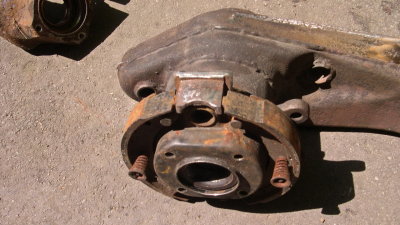

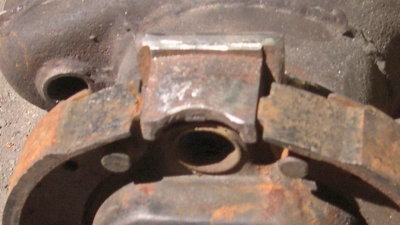

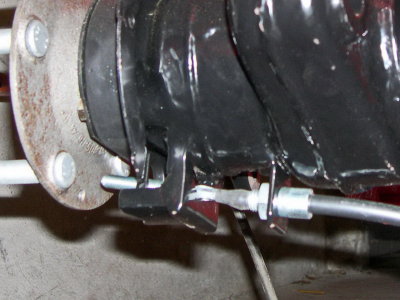

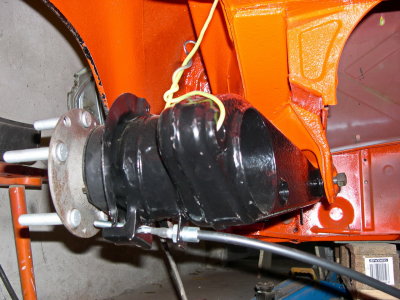

From my point of view it's very important, that the 914 trailing arm features as well the anchor plate as the 911 trailing arm did, since in
the event of using the hand brake, the brake shoes directly pressing against the plate with a very high force.

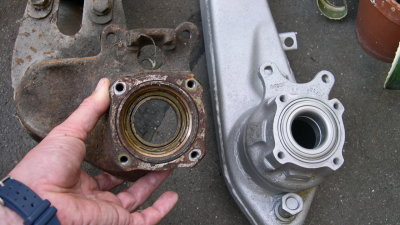

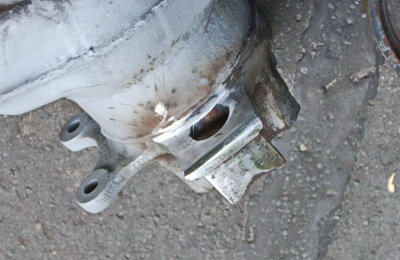

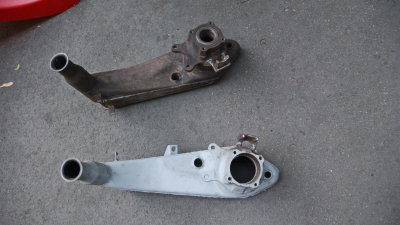

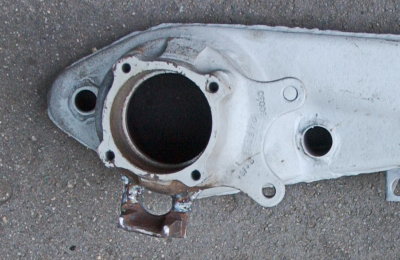

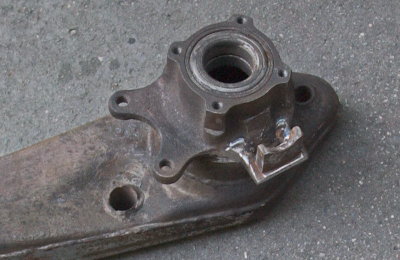

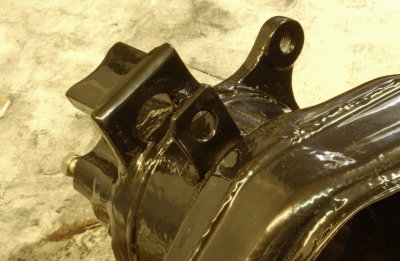

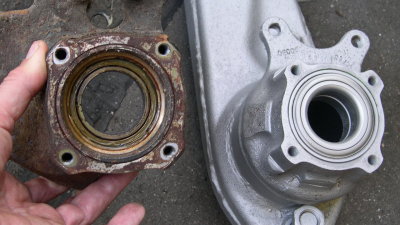

One pictures shows the comparison of the 911 and the 914 setup. The other pictures show, how I've welded the anchor plate on the 914
trailing arm. For this procedure I've build me a special welding rig, to get exactly the same measurements as on the 911 trailing arm.

Sorry for the some times ugly looking pictures. Additionally I send you a scan of a kids card game, which shows the ONS
car. If you have questions, don't hesitate to contact me, but I think, most of the pictures are self-explanatory.

BR

Benno Stabernack
