014 Sitterson Lights

This is for a software engineering project at UNC-CH. The goal was to implement a lighting protocol for dimmers and have it be portable, easy for a user to use, and for it to go in one of 2 main rooms in the computer science building by the beginning of next semester. As you can see, we can turn some lights on, but things are still not perfect! Here is our home page

We used Dynamic C to program the z-world op6800 board.
Proto Board
Proto Board

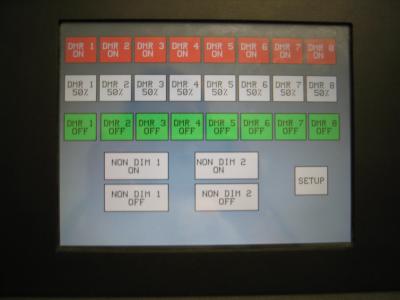

Temporary testing AMX touchpanel
Temporary testing AMX touchpanel

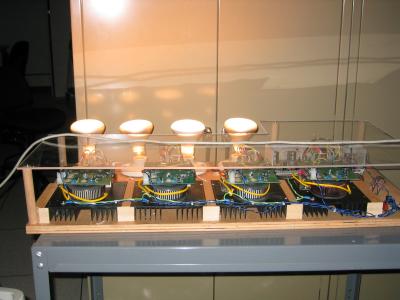

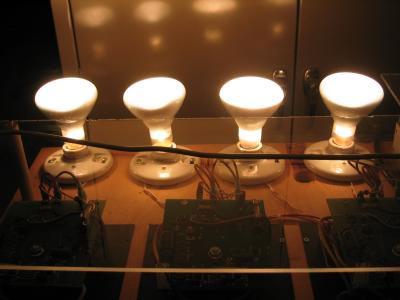

A dimmer
A dimmer

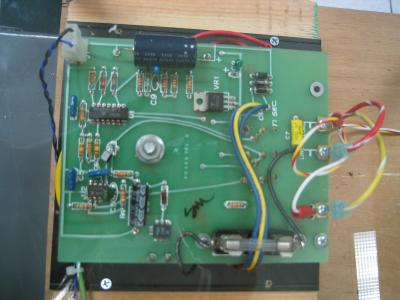

Voltage Converter
Voltage Converter
Voltage Converter 2
Voltage Converter 2

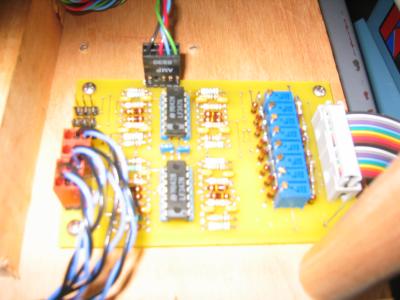

Testing board
Testing board
Testing board
Testing board
Testing board
Testing board
Group Member Josh hard at work on the final presentation
Group Member Josh hard at work on the final presentation
Group Member Amy
Group Member Amy
Testing Board
Testing Board

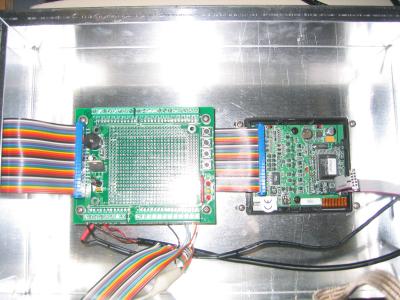

Z-World z80 rabbit 2000 board & proto board
Z-World z80 rabbit 2000 board & proto board
Proto Board
Proto Board
