[ Making adapters on a small lathe ]

Here is pictures I tok while making the custom
adapter used to connect the TrueTek Filterwheel/cam to the Wynne 3" corrector.

The plan was to use the Precise Parts adapter that I use on the FSQ106,
since it´s has correct threads for connecting to the filterwheel.

previous pagepages 1 2 ALL next page
Using the original AG focuser adapter as a workpiece-mount

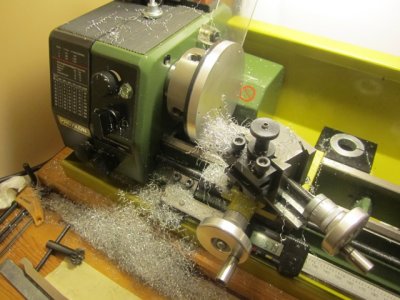

Using the original AG focuser adapter as a workpiece-mount		 100 x 8mm aluminium blank in place..

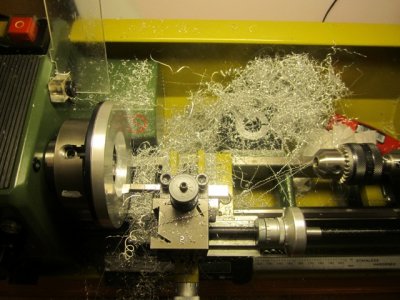

100 x 8mm aluminium blank in place..		 Making a hole..
Making a hole..		 Finalizing the hole before threading..
Finalizing the hole before threading..
Threads done..
Threads done..		 Removing some material..
Removing some material..		 Almost done...

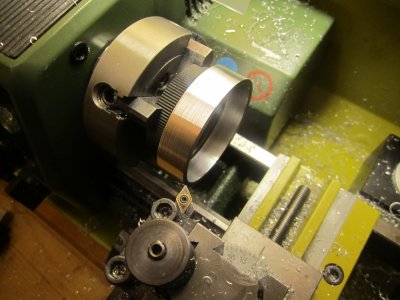

Almost done...		 Making the threaded tube to connect the two pieces..
Making the threaded tube to connect the two pieces..

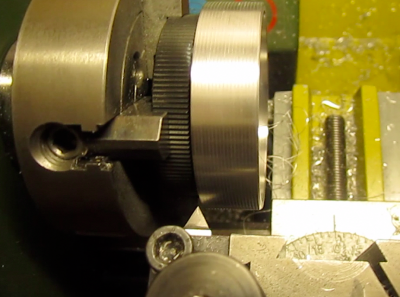

First cut to check the threads with a gauge.
First cut to check the threads with a gauge.		 Threads almost done..

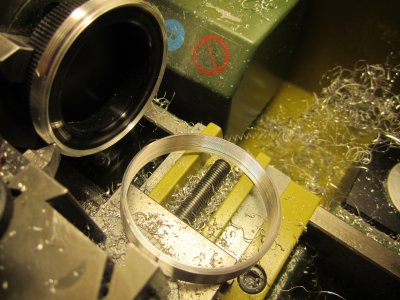

Threads almost done..		 The tube adapter is finnished

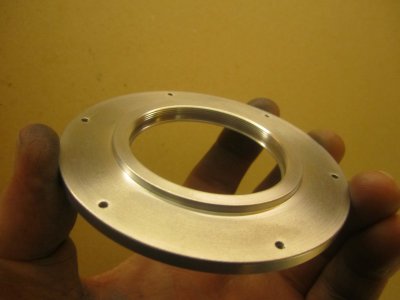

The tube adapter is finnished		 Parts screwed together..
Parts screwed together..
