Odd Digital Signal
6 Pulse Shift |
3 and 7 Pulse Shift |
Long duration slow shift |

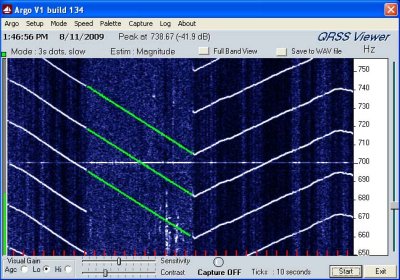

Long duration slow shift with step |

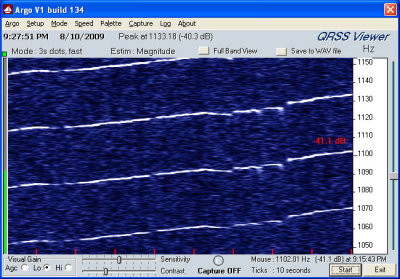

Slow shift 10 second ticks begin |
Slow shift 10 second ticks end |

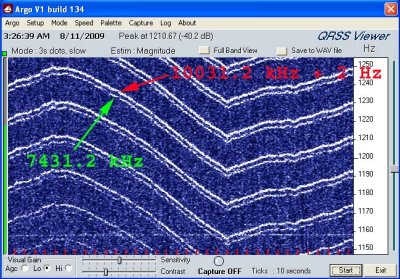

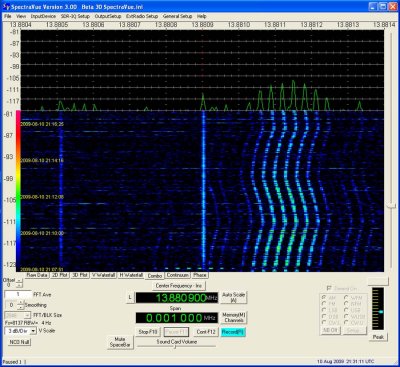

Slow shift, dual freqs, 10 second ticks, 5 minutes 40 seconds total |
Slow shift with gap in transmission, 10 sec ticks, 5 min 40 sec total |

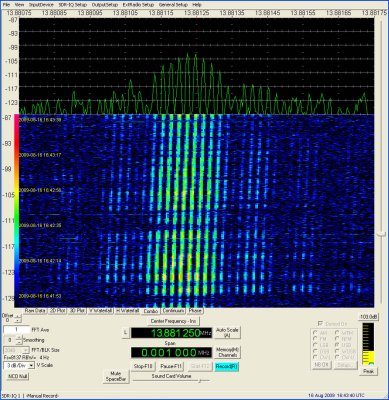

Spectrum, with 23.2 Hz tones |

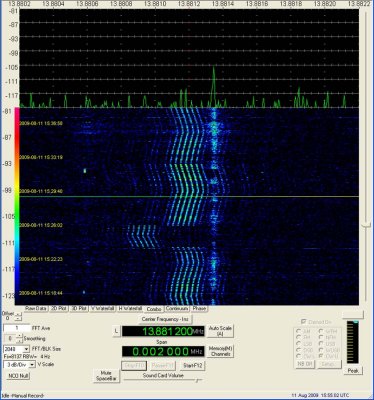

Spectrum, with 23.s Hz tones, drifting up |

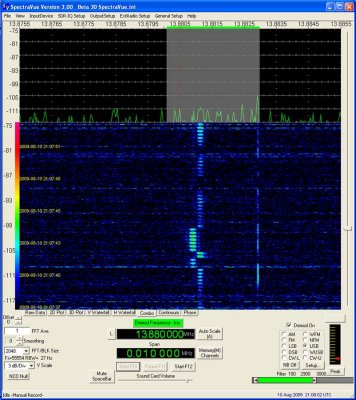

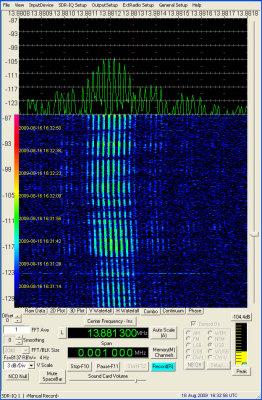

Spectrum of signal, outlined bandwidth |

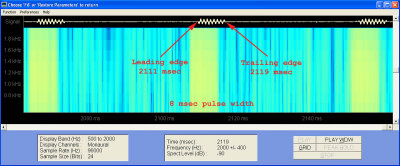

Pulse width of 8 msec or a little less |

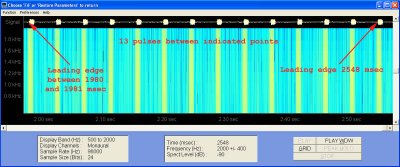

Pulse spacing measurd across 13 pulses, about 43.66 msec |
FAX found very close in freq to the digital signal |
