Phase 3: Modifications

Drivetrain:
Tamiya Super Stock BZ motor
+ Aluminium motor heat sinks
Aluminium shaft cups
Slipper clutch set

Electronics:
Rayspeed VFS-1 ESC
Sanwa RX-231 Micro receiver
Sanwa SX-101z servo
Venom Racing 4600mAh NiMH

Chassis mods
DF-03 aluminium shocks
Hard turnbuckle tie rods

Please respect owner copyright. Do not use any image without permission anywhere.

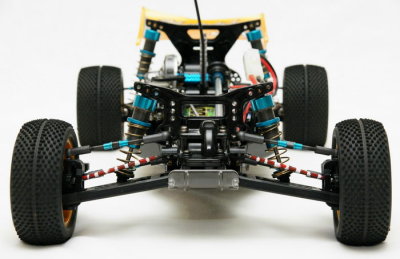

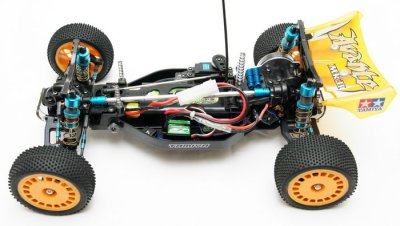

Tamiya DF-03 chassis	Chassis view 3	Chassis view 2
Chassis view 4	Rayspeed ESC and Sanwa receiver	Alu. motor heatsinks, Tamiya Super Stock BZ motor

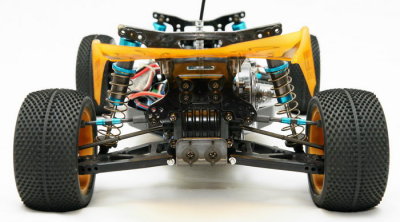

Slipper clutch in translucent gear cover	Stripe-painted dogbones	Rear view of DF-03

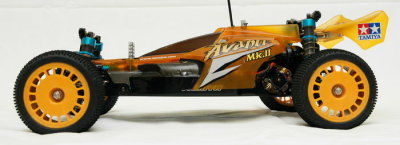

Tamiya Avante Mk.ii	Slim Jim goes for a spin	Wing
