Odyssey lightweight battery

Fabricating a much smaller battery tray for the new racing lightweight odyssey battery in the M3

Installers:
-Syclone
-KGY
We began with cutting the threaded rod, base, & flat aluminum stick to proper dimensions

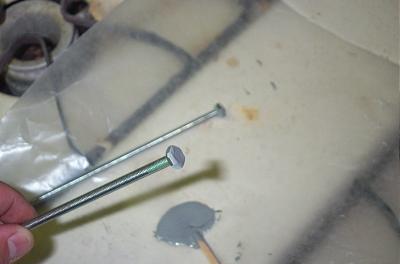

We began with cutting the threaded rod, base, & flat aluminum stick to proper dimensions		 Nut is JB Welded on one end of the threaded rod as an anchor

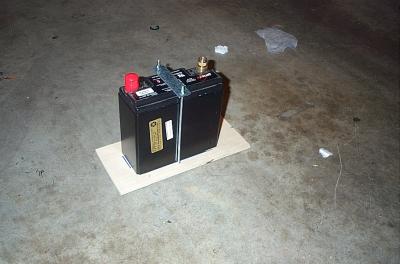

Nut is JB Welded on one end of the threaded rod as an anchor		 The base simulates the factory size so that it can be secured with stock fasteners
The base simulates the factory size so that it can be secured with stock fasteners		 We used rubber padding on the bottom for a tighter fit and vibration dampening
We used rubber padding on the bottom for a tighter fit and vibration dampening
Finished install before battery cover is put back in place
Finished install before battery cover is put back in place
