Custom grounding kit for Evo8

Crimp and soldered
Crimp and soldered

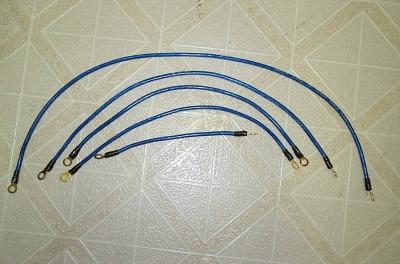

All cables measured and precut
All cables measured and precut

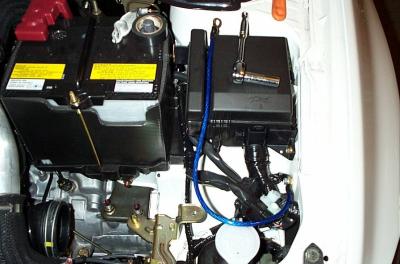

1st ground from fender to battery
1st ground from fender to battery

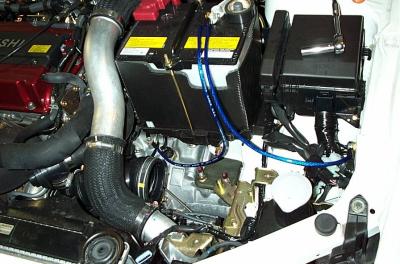

2nd cable from battery to block or tranny
2nd cable from battery to block or tranny
3rd cable from block/tranny to head
3rd cable from block/tranny to head

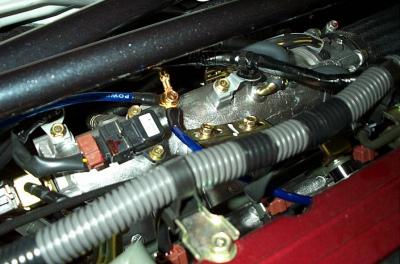

4th from head to intake manifold
4th from head to intake manifold

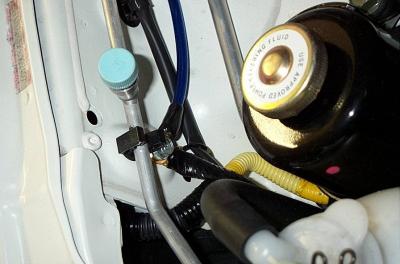

5th from intake manifold to opposite fender
5th from intake manifold to opposite fender

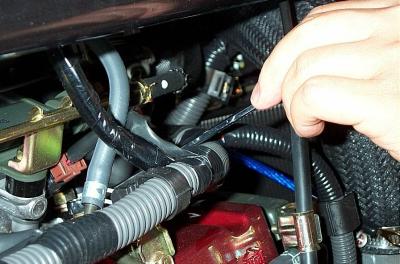

Check to make sure the cables are not close to any moving parts
Check to make sure the cables are not close to any moving parts
