New telescope support pier

These pictures show the new support pier that holds the Takahashi NJP mount.
It has two configurations of operation - one for use with the Astrophysics Starfire
the other for use with the ASA N12 Corrected Newtonian Astrograph (ED. this scope proved
to be of poor quality and was returned).
Both configurations are very stable.

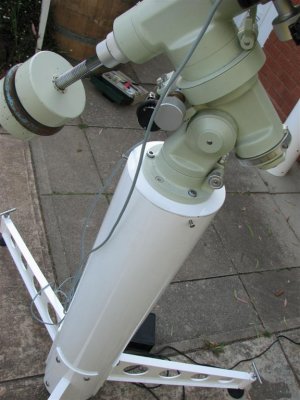

The complete new pier and scope setup

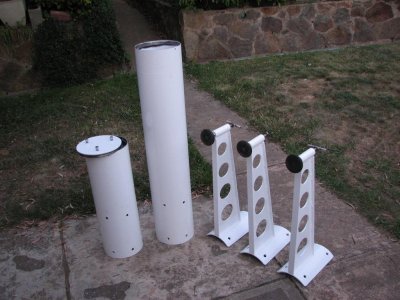

The complete new pier and scope setup		 Disasembled pier
Disasembled pier		 Leg end height adjustment
Leg end height adjustment		 Complete pier (Tall version)

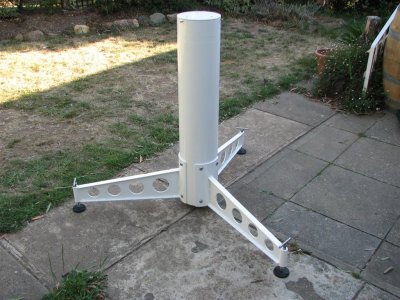

Complete pier (Tall version)
Complete Pier (short version)
Complete Pier (short version)		 Rotating top plate
Rotating top plate		 Pier top plate
Pier top plate
