In this gallery I place the miscellaneous items.

The manifold pics and 13C pics are mostly related to the Sarah Project engine build. But because of their general use and application, I decided to place them here. What I did to the 90+ manifold would be essentially what I would do to one for any build.

Most of the subjects are onesy twosey items; and I will add to the gallery as needed.

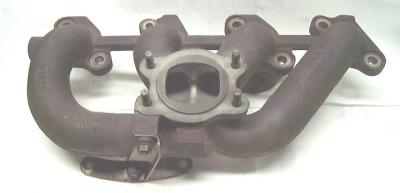

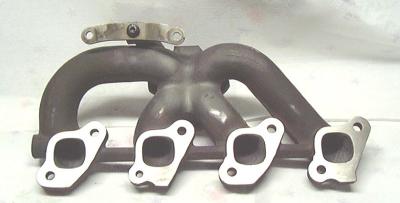

90 manifold...with volvo T3 gasket
90 manifold...with volvo T3 gasket		 lines scribed for grinding

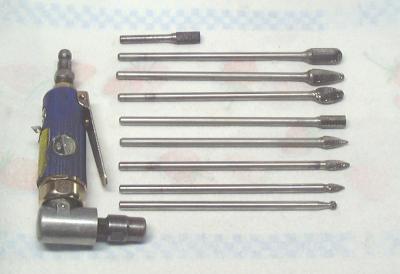

lines scribed for grinding		 angle head 1/4in die grinder and carbide burrs
angle head 1/4in die grinder and carbide burrs		 cracks and goilets...
cracks and goilets...

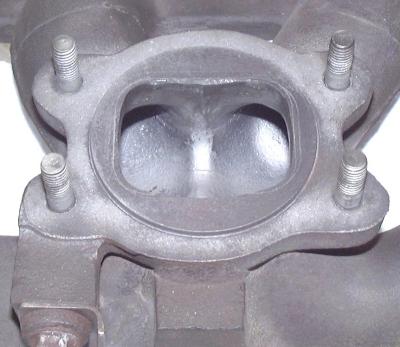

partway there
partway there		 #3 runner before grinding
#3 runner before grinding		 #3 partway there

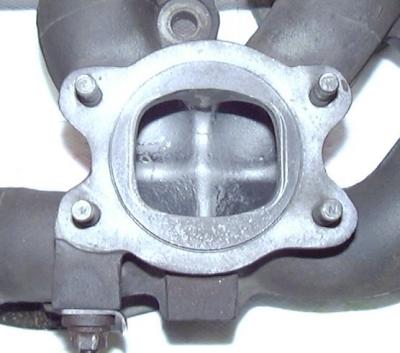

#3 partway there		 final size and shaping done
final size and shaping done

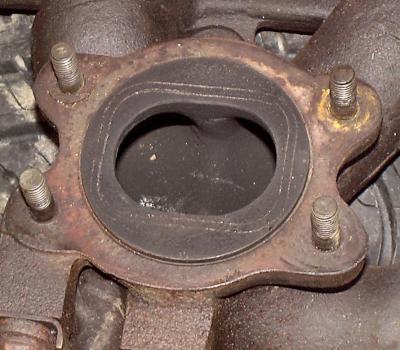

wanted: flat flanges
wanted: flat flanges		 ready to go on
ready to go on		 the 13C....opened up

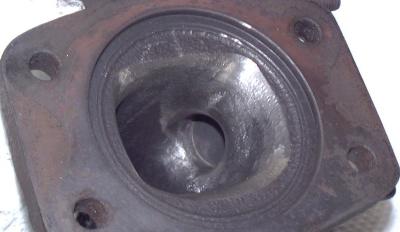

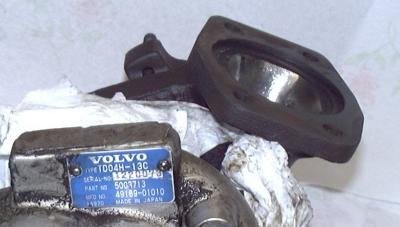

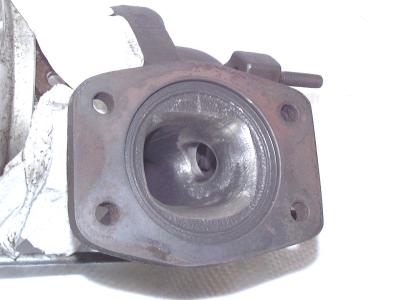

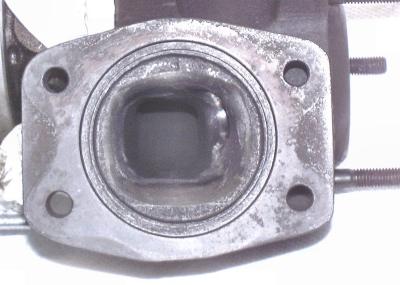

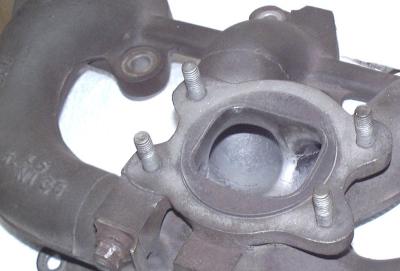

the 13C....opened up		 turbine inlet....before grinding
turbine inlet....before grinding

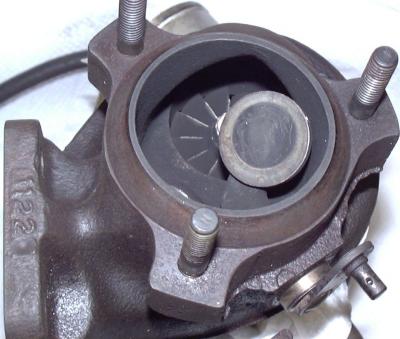

the flapper....room for more flow
the flapper....room for more flow		 working on the wastegate passage
working on the wastegate passage		 progress
progress		 the portal reshaping is done
the portal reshaping is done
ready

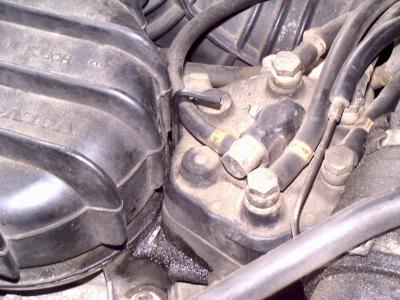

ready		 auxiliary crankcase vent...via the cam cover
auxiliary crankcase vent...via the cam cover		 the power stage

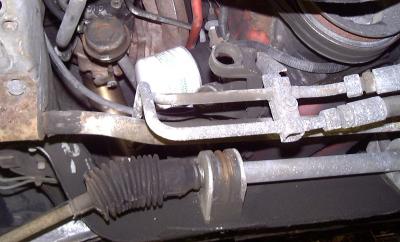

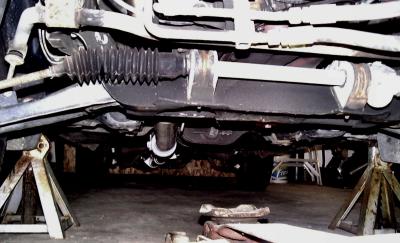

the power stage		 downpipes: EST 3in S/S vs B21ET stock replacement
downpipes: EST 3in S/S vs B21ET stock replacement
L bracket position
L bracket position		 L bracket; 2nd view
L bracket; 2nd view		 where to file the chamfer
where to file the chamfer		 ring gap clocking
ring gap clocking
the cure for melted fuel pump fuse areas in the fuse panel

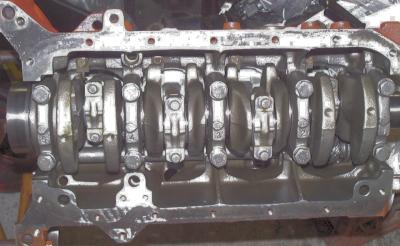

the cure for melted fuel pump fuse areas in the fuse panel		 '93 block; crank and pistons in
'93 block; crank and pistons in		 Adjusting the fuel mix on a B21FT: the tool
Adjusting the fuel mix on a B21FT: the tool		 Access hole to the adjustment screw
Access hole to the adjustment screw
The wrench is in position
The wrench is in position		 Kjet sensor location chart

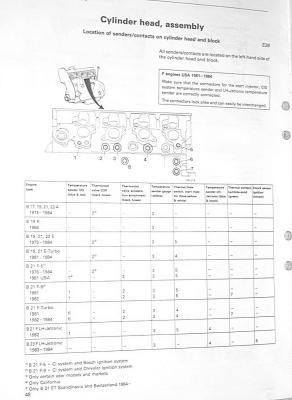

Kjet sensor location chart		 the right side mount for a manual rack
the right side mount for a manual rack		 a view of both mounts
a view of both mounts
