Subwoofer Fabrication

previous pagepages 1 2 3 ALL next page
Cardboard templates used to size up the enclosure
Cardboard templates used to size up the enclosure		 Start of the enclosure build.

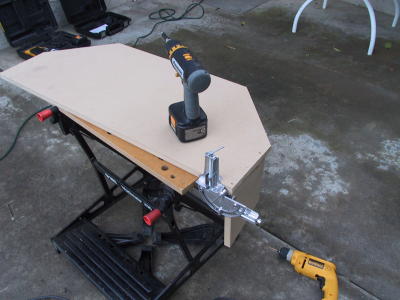

Start of the enclosure build.		 Corner clamps used to line pieces up.
Corner clamps used to line pieces up.		 Steve driving the first screws.
Steve driving the first screws.
Bottom and sides attached.

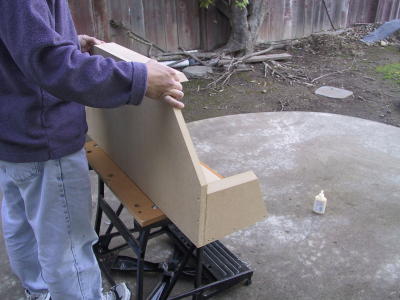

Bottom and sides attached.		 Visualizing the finished size.
Visualizing the finished size.		 Enclosure is for (3) Arc Audio 10D4s.
Enclosure is for (3) Arc Audio 10D4s.		 Note the angles that required compound miter cuts, internal bracing. Jagged hole result of Rotozip. (I need a router! :D)
Note the angles that required compound miter cuts, internal bracing. Jagged hole result of Rotozip. (I need a router! :D)

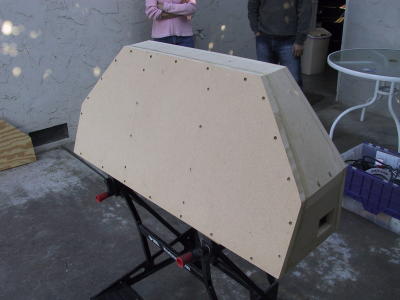

This side faces the back seat of the car.
This side faces the back seat of the car.		 Empty trunk, ready for test fit.
Empty trunk, ready for test fit.		 First try: fits like a glove.
First try: fits like a glove.		 Pretty tight, though a tiny bit of volume is unutilized.
Pretty tight, though a tiny bit of volume is unutilized.
