New battery terminals, new lead for system power, upgraded ground.

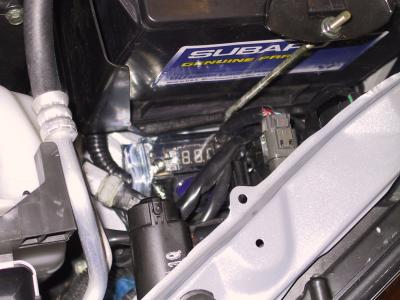

New battery terminals, new lead for system power, upgraded ground.		 Fuse holder/voltage meter tucked down in front of the battery.
Fuse holder/voltage meter tucked down in front of the battery.		 4 gauge power wire coming through firewall grommet.

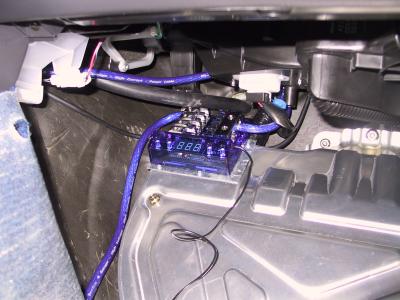

4 gauge power wire coming through firewall grommet.		 Power lead comes across to fused distribution block below glove box.

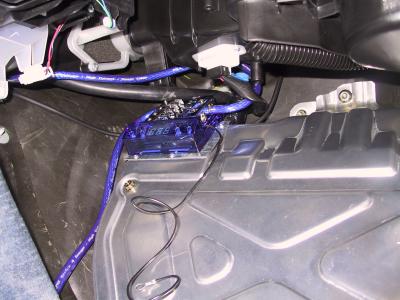

Power lead comes across to fused distribution block below glove box.
Another angle.

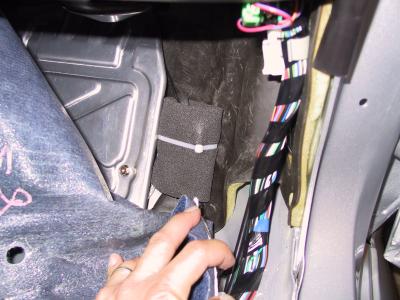

Another angle.		 Ground distribution block @ passenger kick, wrapped and tied with foam.
Ground distribution block @ passenger kick, wrapped and tied with foam.		 Put the carpet up and it is completely stealth.
Put the carpet up and it is completely stealth.		 Buttoned up, can't tell there is anything there.
Buttoned up, can't tell there is anything there.

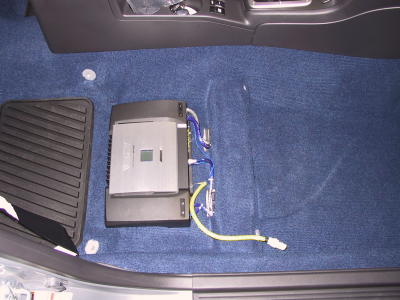

Amp installed and ready to bump!
Amp installed and ready to bump!		 Alpine IVA-W200 Installed

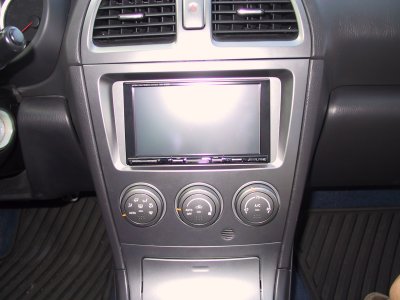

Alpine IVA-W200 Installed		 A perfect fit!
A perfect fit!		 New toys! Alpine PDX4.150 and H701 processor.
New toys! Alpine PDX4.150 and H701 processor.
