STI Door Speaker Install

previous pagepages 1 2 ALL next page
Fabrication of spacer rings.

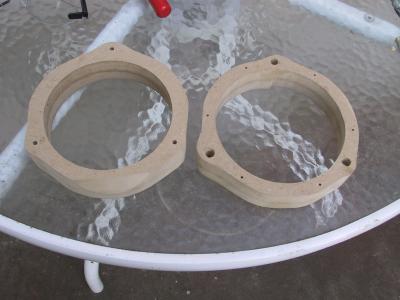

Fabrication of spacer rings.		 Spacer v.1.0 complete.

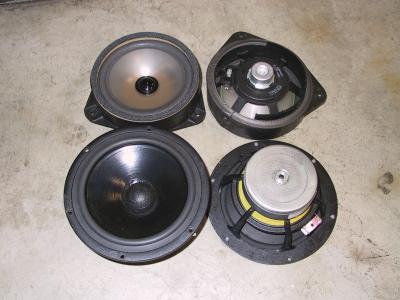

Spacer v.1.0 complete.		 Stock midbasses compared to Seas CA18RLY
Stock midbasses compared to Seas CA18RLY		 Test fit of spacer - note the spacer was trimmed to just 1 1/8 thick.
Test fit of spacer - note the spacer was trimmed to just 1 1/8" thick.

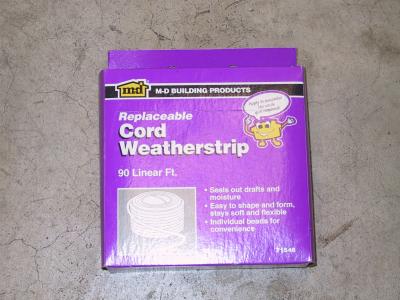

Cord weatherstrip I use for sealing speakers.
Cord weatherstrip I use for sealing speakers.		 Cord weatherstrip installed on door panel.

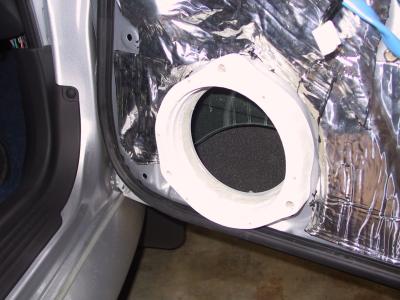

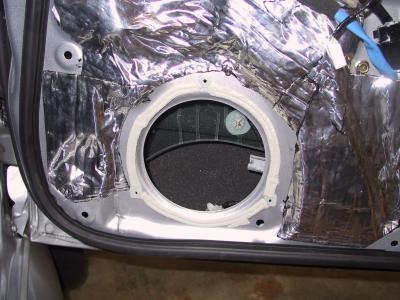

Cord weatherstrip installed on door panel.		 Spacer installed. Note it has been primed for weatherproofing. More caulk placed around the inner edge too.
Spacer installed. Note it has been primed for weatherproofing. More caulk placed around the inner edge too.		 Custom adaptor harness connected to speaker terminals.

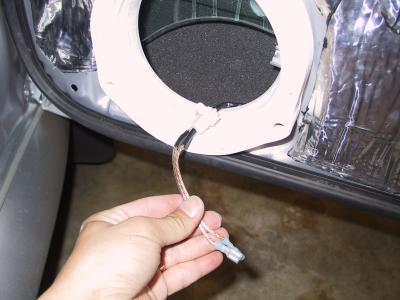

Custom adaptor harness connected to speaker terminals.
Custom adaptor harness connected to door connector.
Custom adaptor harness connected to door connector.		 Weatherstriping on speaker baffle too.

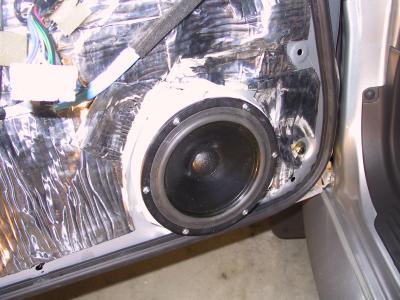

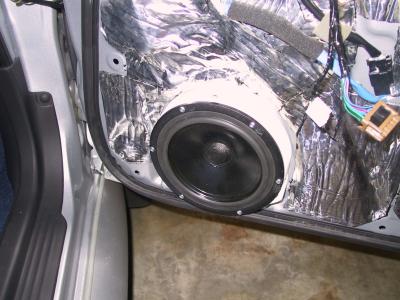

Weatherstriping on speaker baffle too.		 Installed.

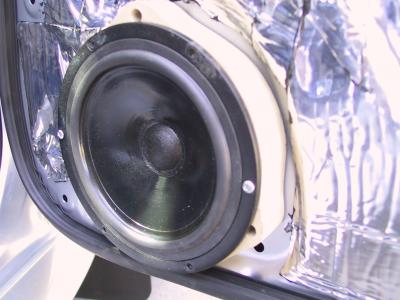

Installed.		 Driver's side midbass.
Driver's side midbass.
