Stage 1 of Ody Audio Upgrade

Head unit, amp, speakers, wiring... Click on this link to Odyclub.com to read commentary about the install/development process.
previous pagepages 1 2 3 4 5 6 ALL next page
amp mounted on seat frame
amp mounted on seat frame		 under side of mount... crossover original pos, moved later
under side of mount... crossover original pos, moved later		 close up of brackets (quick and dirty)
close up of brackets (quick and dirty)		 always tin leads when putting in screw terminal blocks
always tin leads when putting in screw terminal blocks
I use solder/shrink wrap and molex connectors to make my harness cleaner
I use solder/shrink wrap and molex connectors to make my harness cleaner		 tied up bundle, 4-channel audio cable

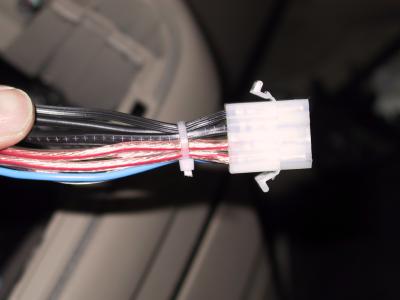

tied up bundle, 4-channel audio cable		 close up of 12 pin molex used on bundle
close up of 12 pin molex used on bundle		 8 speaker leads and remote turn on through molex
8 speaker leads and remote turn on through molex

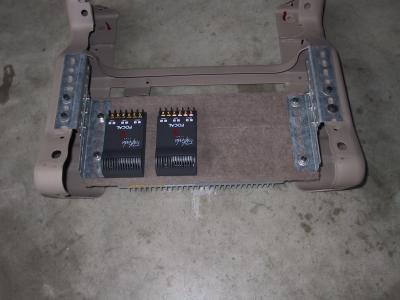

mounted crossovers on separate brackets, back side of seat
mounted crossovers on separate brackets, back side of seat		 top view, driver's seat frame

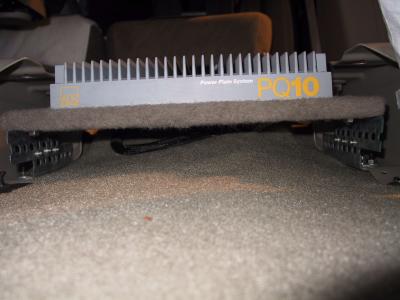

top view, driver's seat frame		 front view, amp
front view, amp		 location of power distribution fuse box
location of power distribution fuse box
