Foglight Install Pictures

Installed square style fogs with older '99-'01 modified wiring harness.
Also did foglight mod to have complete control over fogs & did headlight low/high beam mod.
previous pagepages 1 2 ALL next page
All taped up: I ain't undoing this one
All taped up: I ain't undoing this one		 Hack saw mini-handle

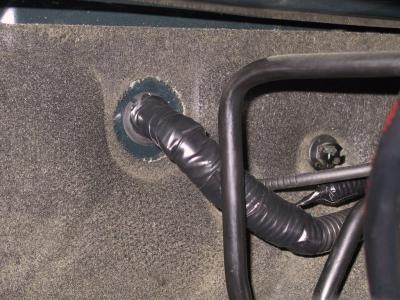

Hack saw mini-handle		 I had to split the grommet and then refeed my 4 gauge as well as the new fog lead. All taped back up.

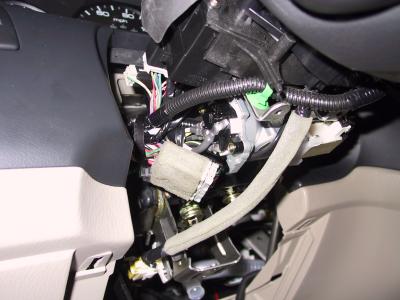

I had to split the grommet and then refeed my 4 gauge as well as the new fog lead. All taped back up.		 Steering column covers removed; note how I tied up the harness
Steering column covers removed; note how I tied up the harness

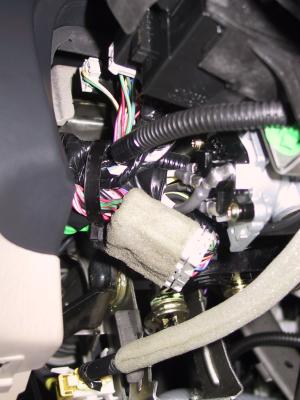

Closer up

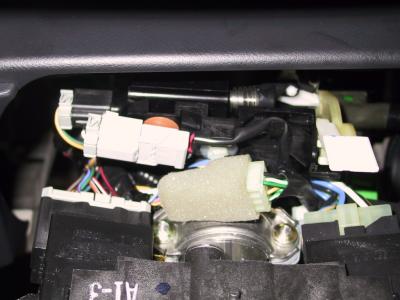

Closer up		 Top view of column

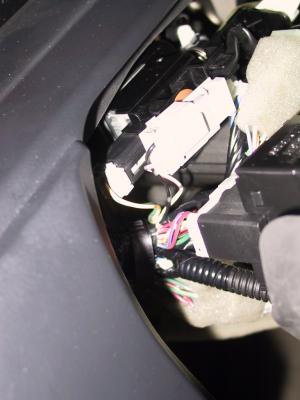

Top view of column		 Looking at column from the left
Looking at column from the left		 I didn't even install in the inside relay, I just tied up the connector

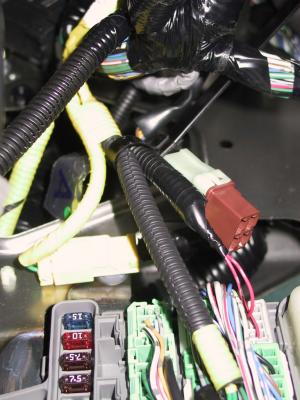

I didn't even install in the inside relay, I just tied up the connector

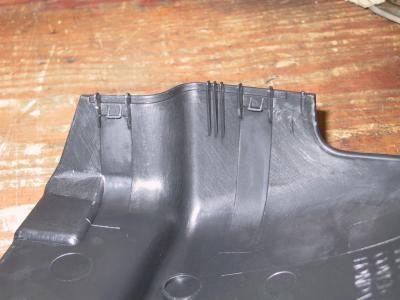

Damn pesky snaps that hold the column cover on (bottom cover)

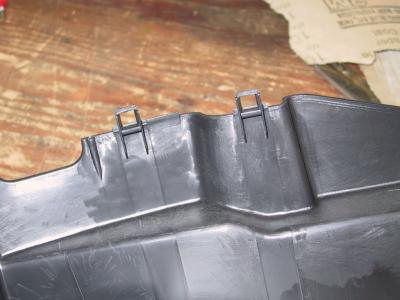

Damn pesky snaps that hold the column cover on (bottom cover)		 Top cover snaps

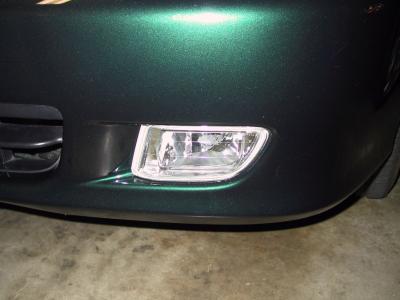

Top cover snaps		 Left light installed and the van has been washed, WHEW!
Left light installed and the van has been washed, WHEW!		 Right light
Right light
