In-Car Measurement Data for DIYMA

previous pagepages 1 2 3 ALL next page
Laptop measurement setup: M-Audio Mobilepre USB & laptop
Laptop measurement setup: M-Audio Mobilepre USB & laptop
Behringer ECM8000 Measurement microphone
Behringer ECM8000 Measurement microphone
Measurement response, left door with RW165 midbass.
Measurement response, left door with RW165 midbass.
Measurement response, left door with W15LY midbass.
Measurement response, left door with W15LY midbass.
Measurement response, right door with RW165 midbass.
Measurement response, right door with RW165 midbass.
Measurement response, left door with W15LY midbass.
Measurement response, left door with W15LY midbass.
Plot comparing in-door response of the left door speaker. No sound deadening installed.
Plot comparing in-door response of the left door speaker. No sound deadening installed.
Plot comparing in-door response of the right door speaker. No sound deadening installed.
Plot comparing in-door response of the right door speaker. No sound deadening installed.
Left speaker measured in 5 locations across the vehicle.
Left speaker measured in 5 locations across the vehicle.
Right speaker measured at 5 locations across the vehicle.
Right speaker measured at 5 locations across the vehicle.
Comparison of measurements with microphone's position adjacent to the measured speaker.
Comparison of measurements with microphone's position adjacent to the measured speaker.
Door speakers measured with microphone at center of vehicle.
Door speakers measured with microphone at center of vehicle.
Comparison of measurements with microphone's position opposite to the measured speaker.
Comparison of measurements with microphone's position opposite to the measured speaker.
Comparison of right speaker response measured from driver's seat vs. near field with the door wide open.  (no room)
Comparison of right speaker response measured from driver's seat vs. near field with the door wide open. (no room)
Impact of door treatments on left speaker response, measured at driver's ear.
Impact of door treatments on left speaker response, measured at driver's ear.
Impact of door treatments on right speaker response, measured at driver's ear.
Impact of door treatments on right speaker response, measured at driver's ear.
Left window open.
Left window open.

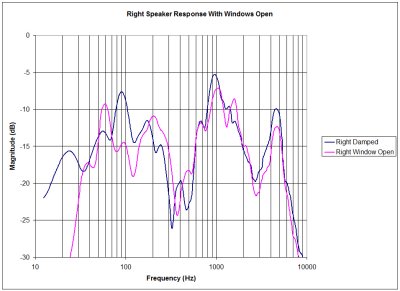

Right window open.
Right window open.
Comparison of right side frequency response with and without grills (measured from right ear)
Comparison of right side frequency response with and without grills (measured from right ear)
