Build Pics of my DIY full-active system overhaul.

In process and development build pictures of my system during my overhaul. All work completed by yours truly. :D
previous pagepages 1 2 ALL next page
Building an amp mount for the Alpine MRV-T300. Glued and clamped.
Building an amp mount for the Alpine MRV-T300. Glued and clamped.		 Glue dry, ready for carpet.

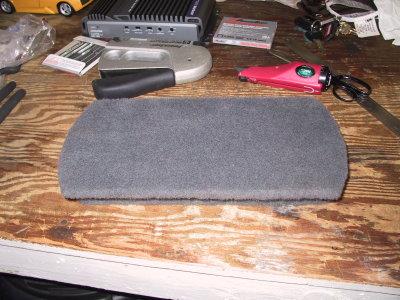

Glue dry, ready for carpet.		 Nice and clean looking with carpet.
Nice and clean looking with carpet.		 Bottom side showing carpet attach.
Bottom side showing carpet attach.
Added a couple more pieces of carpet to assure it is rattle-proof.
Added a couple more pieces of carpet to assure it is "rattle-proof".		 Amp mounted.

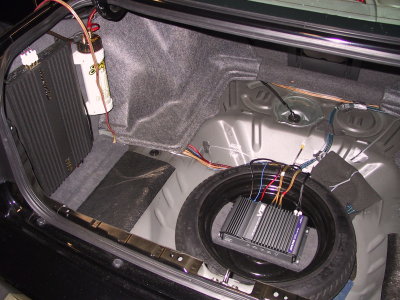

Amp mounted.		 Fits perfectly in the middle of the spare tire.
Fits perfectly in the middle of the spare tire.		 Closer view of wiring. Old interconnects were not pulled but wrapped in ensolite for now.
Closer view of wiring. Old interconnects were not pulled but wrapped in ensolite for now.
Alpine DVA-9861
Alpine DVA-9861		 RUX-C701 temporarily resided underneath the seat until I installed it in the dash.
RUX-C701 temporarily resided underneath the seat until I installed it in the dash.		 Hiquphon Scan combo in driver's side. (mock up enclosure)
Hiquphon Scan combo in driver's side. (mock up enclosure)		 Passenger side combo. (mock up enclosure)
Passenger side combo. (mock up enclosure)
