Fixing the Blown Lifter Damage
Here are some pictures of my '94 FLSTC with 60,281 miles on it. I hads a lifter
let go at 5:30am one Tuesday morning on the way to work..
Fun Stuff....
60K mile lifter.JPG

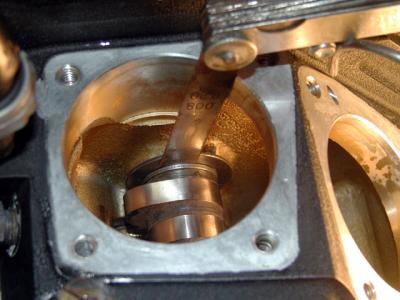

Checking the camshaft endplay between shim and thrust washer.JPG

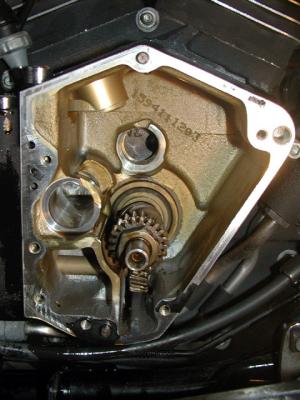

Empty cam case, where are those bearings.JPG
INA on left Torrington on right.JPG
Inserting the new inner bearing.JPG
Installing lifters and lifter blcok with JIMS alignment tool.JPG

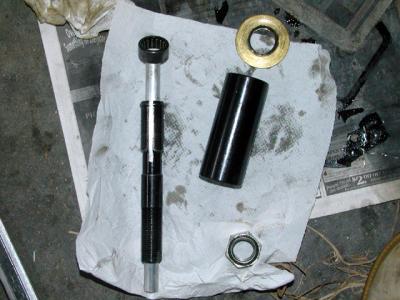

JIMS bearing puller and INA bearing.JPG
JIMS inner bearing puller1.JPG

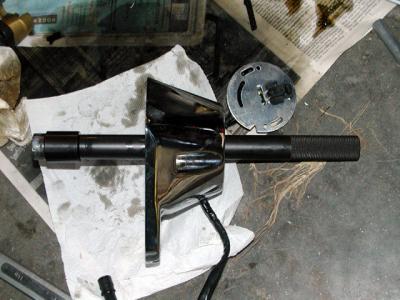

JIMS installation tool inserted through nose cone.JPG
Looking for bearing parts in the pump.JPG
New bearing installed.JPG

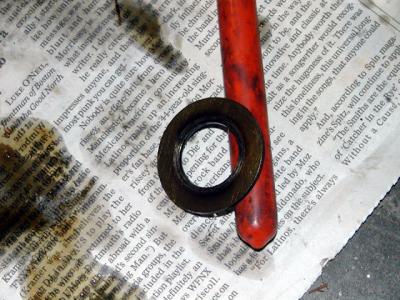

New style thrust washer with no tabs.JPG
Nothing found.JPG
before 2.JPG
before shot.JPG
cam case.JPG
draining the gas.JPG
empty cam case.JPG

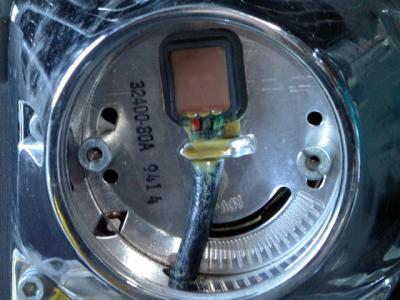

pickup mounted in nosecone.JPG

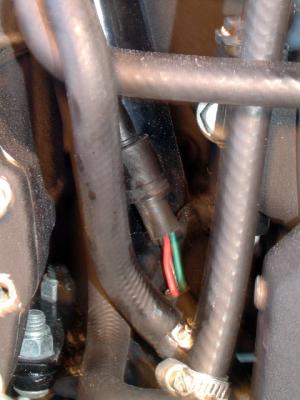

pickup wire routing1.JPG
pickup wire routing2.JPG
pickup wire routing3.JPG

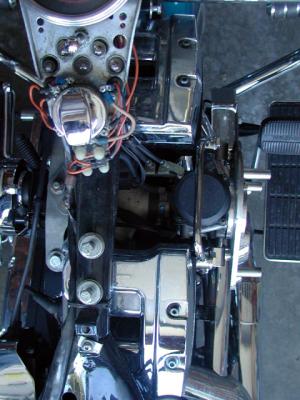

stipping it down 2.JPG
stripping it down 3.JPG
stripping it down 4.JPG
stripping it down1.JPG
