Focus Cell Screw 2664.jpg

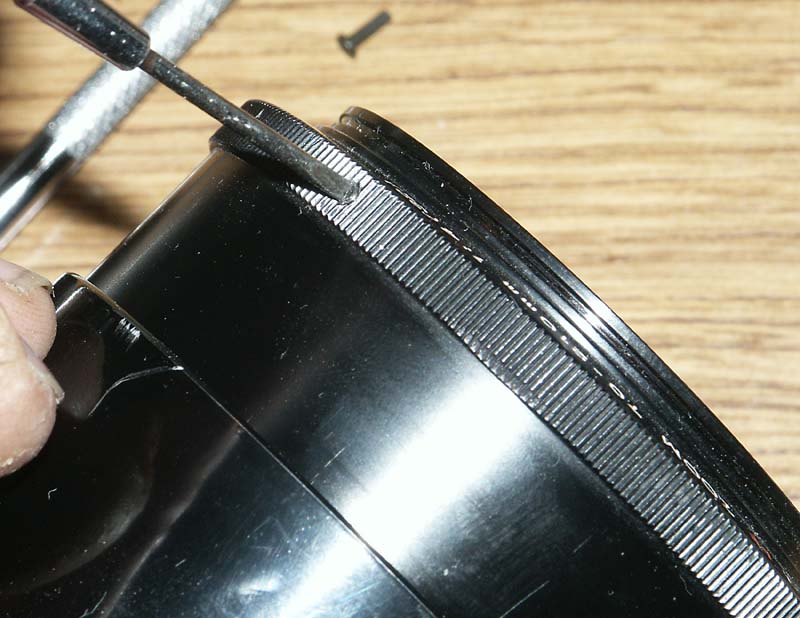

Carefully mark the position of the front element cell in relation to the filter ring.
This is important to restore infinity focus.

Loosen the three set screws that set the focusing cell to the helicoid.
It is not necessary to remove the screws.
