Paul Meskill | profile | all galleries >> Olympus c-2100uz MODE DIAL "DIY" REPLACEMENT >> uzi_projects tree view | thumbnails | slideshow
Two cameras on my work bench.
Both were from ebay purchased
broken. First one is in great
cosmetic shape but won't turn on.
Second one was taken apart by the
seller and then put up on eBay.
to me as is. I intend to clean it, put
it back together and see why it was taken
apart appearantly a long time ago.
The Camera that won't Turn On
The Camera that won't Turn On
The UZI as Received
The UZI as Received
Another shot of the Back
Another shot of the Back
Close-up of the View Finder Housing
Close-up of the View Finder Housing
Back of the Camera
Back of the Camera
View With The Covers Off
View With The Covers Off
Another View of The Broken Plug
Another View of The Broken Plug
Looking for The SDS Fuses
Looking for The SDS Fuses
Another shot in the Power Supply
Another shot in the Power Supply
Is This The UZI Powerboard?
Is This The UZI Powerboard?
A Closer View
A Closer View
Close-up of The Little Resistors?
Close-up of The Little Resistors?
The NAKED UZI
The "NAKED" UZI
The Left Side
The Left Side
Another View of The Naked UZI
Another View of The "Naked" UZI
Top View of the NAKED UZI
Top View of the "NAKED" UZI
UZI Parts
UZI Parts
Finally Found the Little N Fuse/Resistors
Finally Found the Little "N" Fuse/Resistors
My Parts Camera (UZI)
My Parts Camera (UZI)
Another View of the UZI parts.
Another View of the UZI parts.
More UZI Camera in Dis-Assembly
More UZI Camera in Dis-Assembly
The Back Side Of The Lens Assembly
The Back Side Of The Lens Assembly

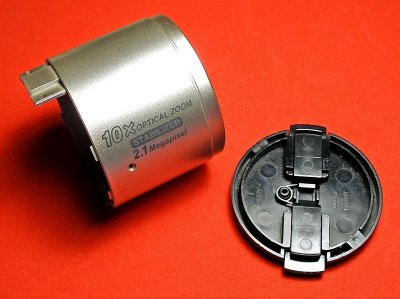

Nose Piece and Lens Cap
Nose Piece and Lens Cap
Ashley With The Re-done Backup Camera
Ashley With The Re-done Backup Camera
My c-2100uz Parts Stash
My c-2100uz Parts Stash
The Updated c-2100uz Backup Camera
The Updated c-2100uz Backup Camera
A c-7000z Shot
A c-7000z Shot

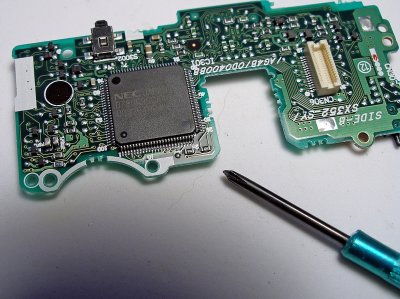

Main Circuit Board UZI
Main Circuit Board "UZI"
Close-Up of the Capacitor
Close-Up of the Capacitor
UZI Accessory Door
UZI Accessory Door

comment | share
Kiriakos 07-Jan-2010 19:38
You had save lots of people with your pictures , and all this years, you did not got even an Thanks , from anyone ..

I like to thank you .. allot !!
For you great work .

KIRIAKOS TRIANTAFILLOU VOLOS GREECE ( The Olyboy from Dbreview.com )
Electrician & Electronics engineer .. with 40 winters on my back.
My UZI are fine , got an injured E-100RS , and researching your images so to rescue it.
For the moment I had stuck finding the unit Dial , but with the Gods will, I will sort it out.
UZI uses the Part No : VC144800 and the EZI the Part No : VC153400
They are the same only the color changes.

Take care , and Thanks again.
