Cartopper Dinghy Loader

We needed an easy way to transport our dinghy on top of our van. I saw an idea for a car top dinghy loading scheme on another site ( http://web.mac.com/robertwagenvoort/iWeb/Site/Cartop%20Lift.html). So, after thinking it through, decided to build one with my own innovations.
Rolling the dinghy into lifting position
Rolling the dinghy into lifting position		 Ready to lift
Ready to lift		 Supported by 2x4 block
Supported by 2x4 block
Use the legs!
Use the legs!		 Support coming into position

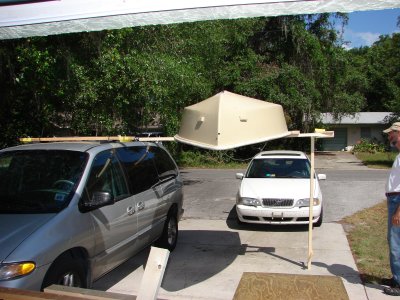

Support coming into position		 Self-supporting!
Self-supporting!
Ready to slide over
Ready to slide over		 Pushing over
Pushing over		 Lifting ends over tie-down eyes
Lifting ends over tie-down eyes
In travel position, ready to tie down
In travel position, ready to tie down		 Starting to unload
Starting to unload		 Lifting end over tie-down eye
Lifting end over tie-down eye
Pushing into unload position
Pushing into unload position		 Starting to come down, kicking suport out of the way
Starting to come down, kicking suport out of the way		 Use the legs!!!
Use the legs!!!
Strap-on dolly
Strap-on dolly		 Placing dolly in position
Placing dolly in position		 Placing dolly in position
Placing dolly in position
Tighten nylon strap
Tighten nylon strap		 Ready to roll
Ready to roll		 Passing line through oarlock to help turn
Passing line through oarlock to help turn
Using line to start the roll
Using line to start the roll		 Easing her down
Easing her down		 The Spindrift has landed!
The Spindrift has landed!
Moving with the dolly
Moving with the dolly		 The lifting rack
The lifting rack		 Unhooking
Unhooking
Pivot end detail
Pivot end detail		 Folded up
Folded up		 Pivot end underneath showing support leg hinge and cutout
Pivot end underneath showing support leg hinge and cutout
Cleat added to support leg to hold ends together, turn button on other side
Cleat added to support leg to hold ends together, turn button on other side		 Cartopper end view
Cartopper end view		 Cartopper top view
Cartopper top view
Cartopper details
Cartopper details
