rv-7a panel work

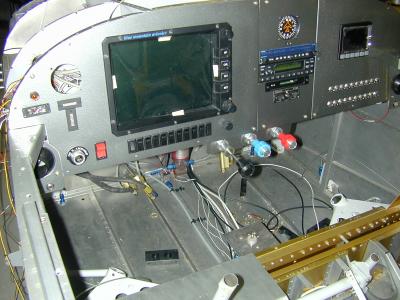

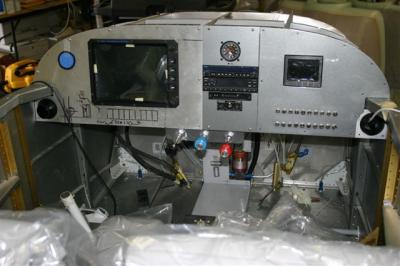

4-29-05+panel+work- downward view of dynon 4-29-05+panel+work+036.jpg dynon flush mount back view 4-29-05+panel+work+059.jpg

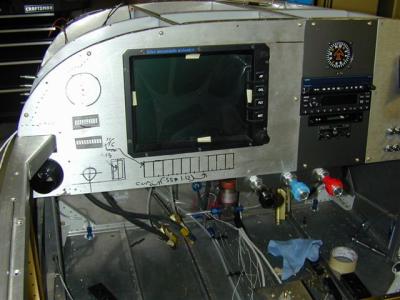

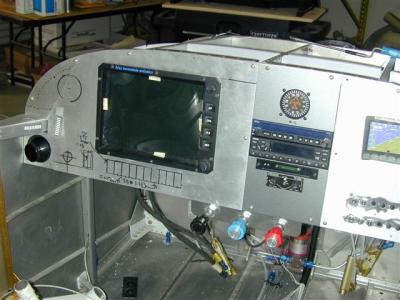

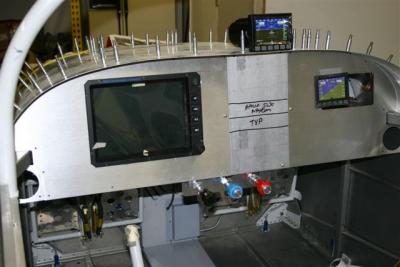

feb+05-- first big cut. BMA EFIS one. feb+05+023.jpg cig+lighter+and+trim+id+decisions+007.jpg cig+lighter+and+trim+id+decisions+006.jpg
4-29-05 circuit breaker bus bars done 4-29-05 Dynon in XL right panel panel+work+4+22+05cir+breakers holes drilled more+panel+aileron decisions

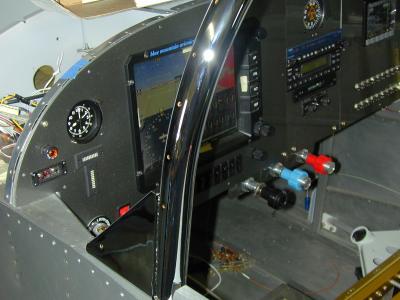

5-30-05+004.jpg 5-30-05+002.jpg 5-30-05+007.jpg DSCN1983.JPG

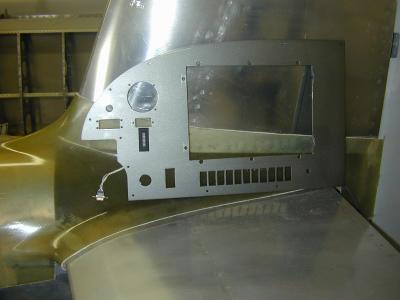

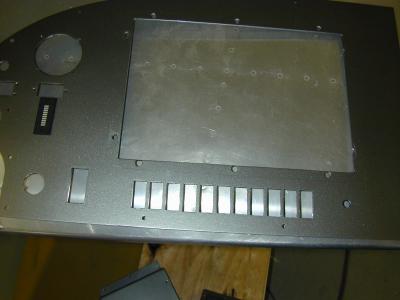

ready to take over to the trophy shop for silk screening DSCN1985.JPG DSCN1986.JPG DSCN1987.JPG

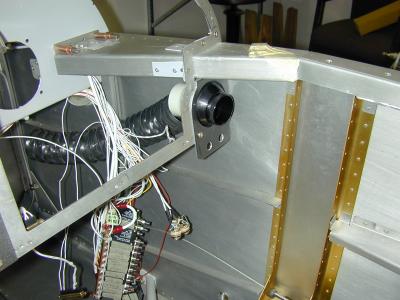

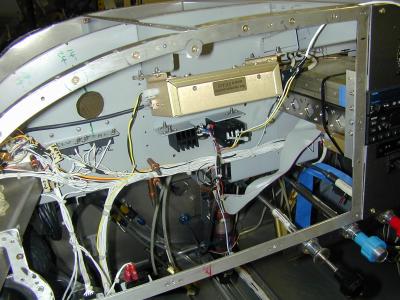

DSCN1988.JPG DSCN1615.JPG DSCN1621.JPG DSCN2028.JPG

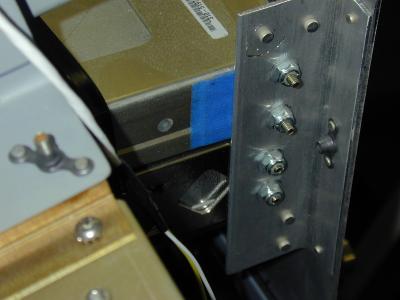

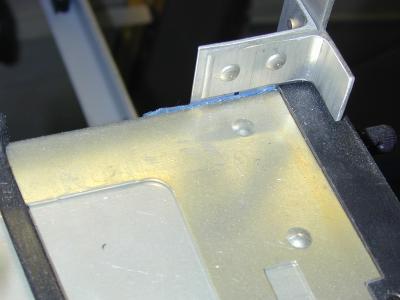

DSCN2029.JPG DSCN1989.JPG DSCN1991.JPG DSCN1992.JPG
DSCN1993.JPG panel back in shop. got talked into Vinyl graphics DSCN2447.JPG DSCN2468.JPG

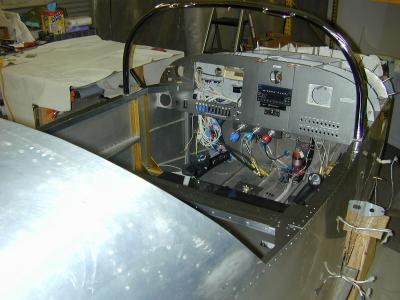

DSCN2469.JPG 8-19-05 fri 004.jpg-- ken's Heritage 8-27-05 sat thinking about putting this back together 8-27-05 sat - thinking about clear coating over labels

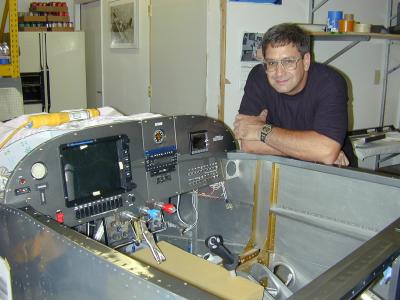

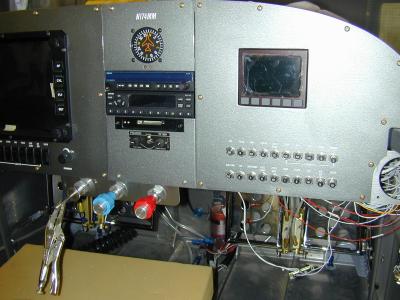

9-1-05 big day- back in place after mos of details 9-1-05 lost a few knobs and screws along the way. 9-1-05 big day -- probably use black pan head screws or socket head 9-1-05 big day-- PPG DBC /2905S base and 2042, DCX61, DT885 clear
9-1-05 ran out of panel space-- had to put some things under dash like parking brake and alt air 9-1-05 had to put cabin heat push pull under panel-- no room left. 9-1-05 big day 090.jpg 9-1-05 big day 088.jpg

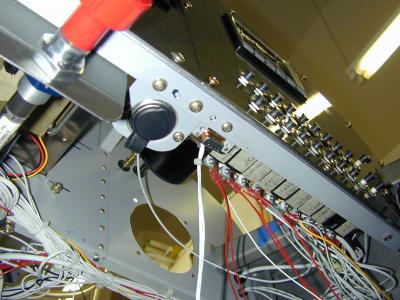

9-1-05 big day-- had to get rid of the stereo speaker-- too big of a magnet 9-1-05 big day -- will be asking for help(how) to rivet top skin 9-1-05 big day-- headed the right direction 9-11-05 001.jpg
9-11-05.jpg more+full+panel+aileron.jpg more+full+panel+aileron.jpg feb+23+panel+txp+fit.jpg

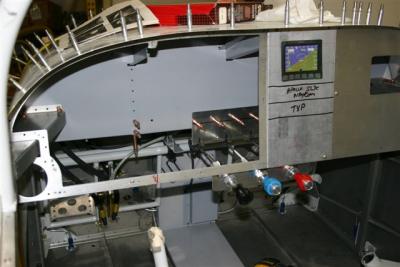

feb+05+panel+pict+unfinished.jpg feb+05 inside panel shot.jpg feb 5 inside left panel area.jpg inside panel shot.jpg

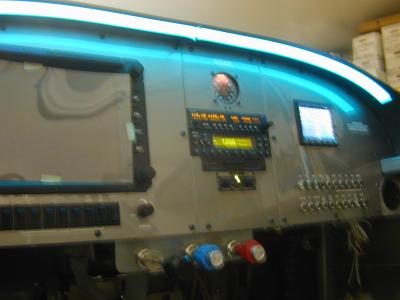

4-21-05+orig+cb+design.jpg 11.23.05 018.jpg 11.23.05 016.jpg 11.23.05 041.jpg
11.23.05 047.jpg 4-21-05+auto+pilot+ctlr++cpu.jpg 4-21-05+blue+mtn+cpu.jpg 4-21-05+BMA+CPU+almost+done.jpg

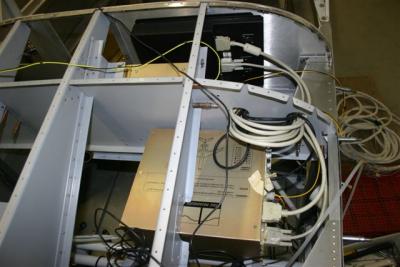

auto pilot mounted.jpg blue+Mtn cpu left view.jpg blue+Mtn cpu mounted.jpg cpu view from right side.jpg

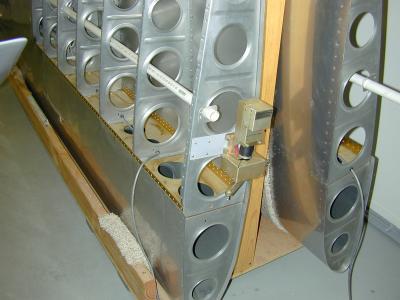

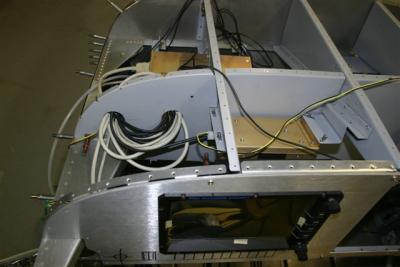

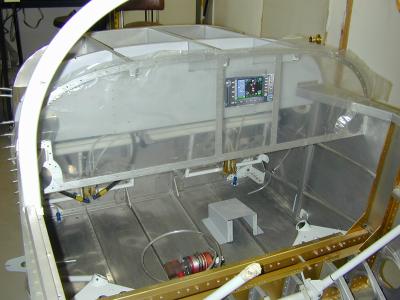

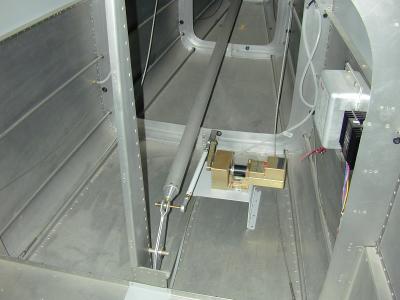

extra cables --URGHH.jpg DSCN1615.JPG DSCN1616.JPG DSCN1617.JPG

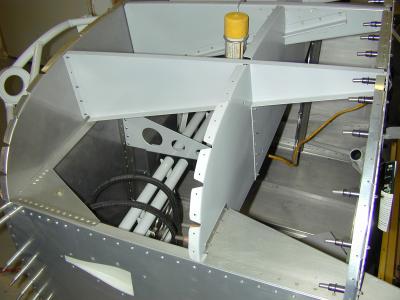

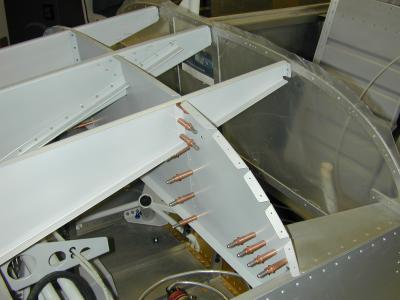

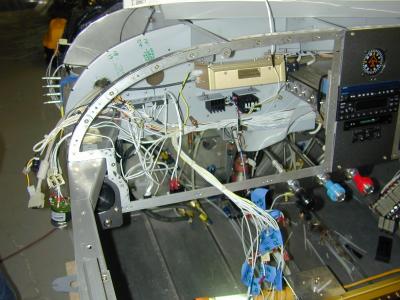

DSCN1618.JPG DSCN1966.JPG DSCN2036.JPG DSCN0091.JPG
6-13-05+030.jpg too close to edge. had to lower for nut plate placements efis tray.jpg 7-18-05 036.jpg

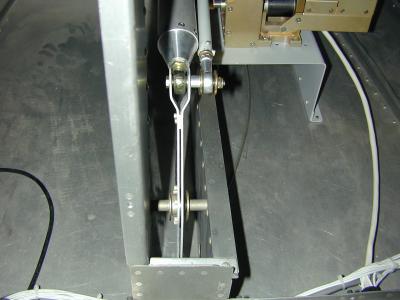

7-18-05 037.jpg 7-18-05 038.jpg 7-18-05 040.jpg 7-18-05 007.jpg

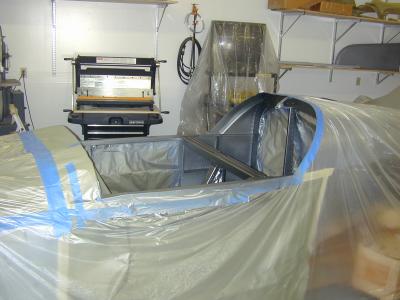

7-18-05 008.jpg 7-18-05 019.jpg 7-26-05 006.jpg 8-18-05 011.jpg

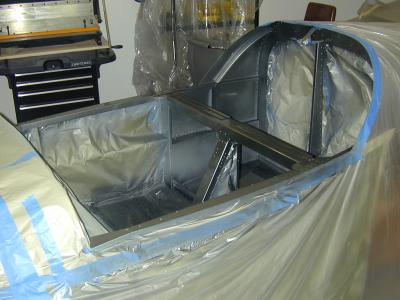

8-18-05 006.jpg 8-18-05 019.jpg 10-10-05 016.jpg 10.20.05 008.jpg
10.20.05 013.jpg 10.20.05 012.jpg 10.21.05 007.jpg 10.21.05 009.jpg
10.21.05 013.jpg 11.05.05 sent CPU back to BMA for gyro upgrade 11.05.05 012.jpg 12.28.05 007.jpg

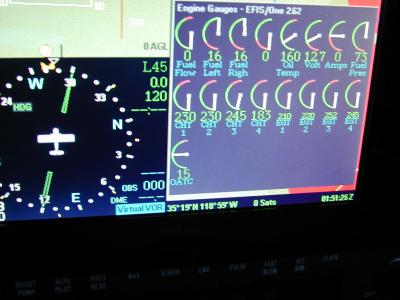

12.28.05 009.jpg 5.10.06 006.jpg 5.10.06 016.jpg 5.10.06 030.jpg

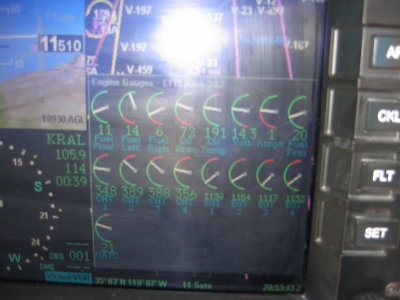

7.29.06 013.jpg 7.29.06 014.jpg 7.29.06 040.jpg 7.29.06 041.jpg
7.29.06 051.jpg RIPON got to put the camera down now 7.29.06 420.jpg 7.29.06 421.jpg 7.29.06 422.jpg
7.29.06 424.jpg 7.29.06 425.jpg 7.29.06 426.jpg 7.29.06 428.jpg Very Hazy going into the valley for Provo, ut
7.29.06 429.jpg 7.29.06 431.jpg 7.29.06 434.jpg Departing Provo, Ut 7.29.06 436.jpg North Las Vegas
7.29.06 439.jpg 9.02.06 095.jpg 9.02.06 096.jpg 9.02.06
9.02.06 008.jpg 8.09.07 035.jpg 8.09.07 043.jpg 8.09.07 045.jpg
8.09.07 046.jpg 8.09.07 047.jpg 8.09.07 080.jpg 8.09.07 052.jpg
