Caltracs Install

Remove u-bolts
Remove u-bolts		 Remove U-bolts and Springs

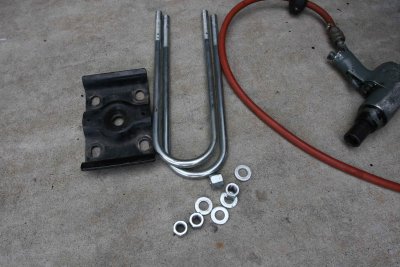

Remove U-bolts and Springs		 These won't be needed anymore, Square U-bolts will be used to go over the Spring
These won't be needed anymore, Square U-bolts will be used to go over the Spring		 Press Front Rubber Bushings out

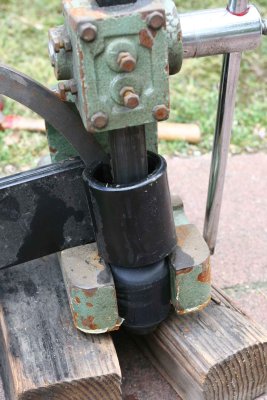

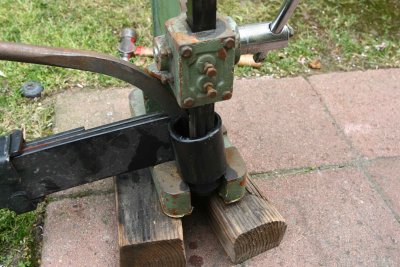

Press Front Rubber Bushings out
A Wedge and Penetrating Oil was needed

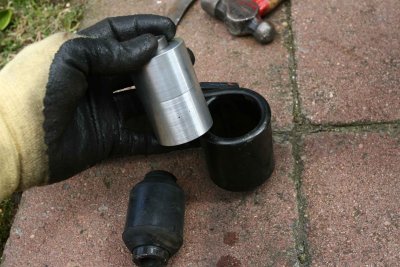

A Wedge and Penetrating Oil was needed		 A New Aluminum Bushing and Sleeve are Supplied

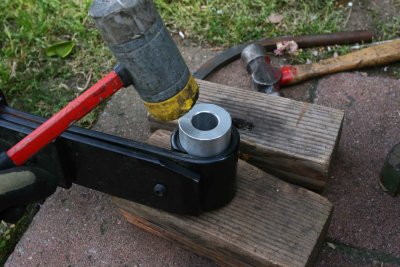

A New Aluminum Bushing and Sleeve are Supplied		 Install new Sleeve in Spring

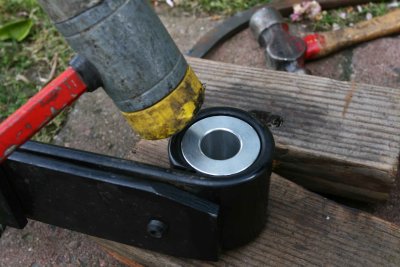

Install new Sleeve in Spring		 Install Sleeve flush in Spring Width
Install Sleeve flush in Spring Width

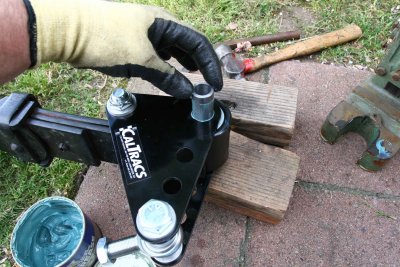

Apply Grease on Inner Bushing and Install Caltracs Triangle
Apply Grease on Inner Bushing and Install Caltracs Triangle		 Reinstall Spring into Truck
Reinstall Spring into Truck		 Reinstall Bolts into Springs

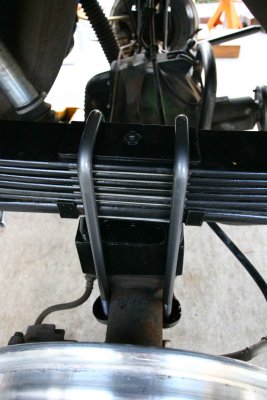

Reinstall Bolts into Springs		 Install new U-bolts and Caltracs Axle Brackets
Install new U-bolts and Caltracs Axle Brackets

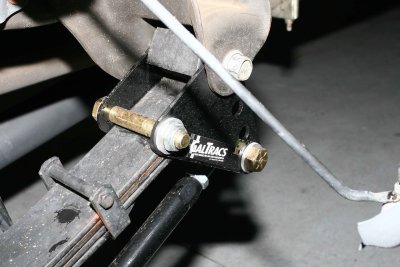

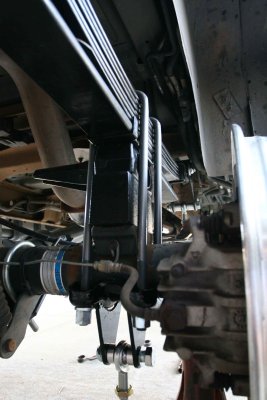

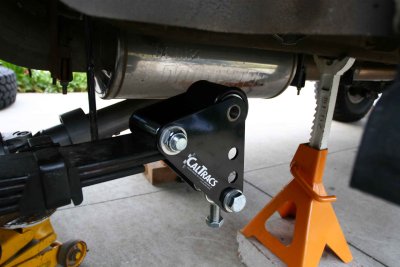

U-bolts and new Axle Bracket installed

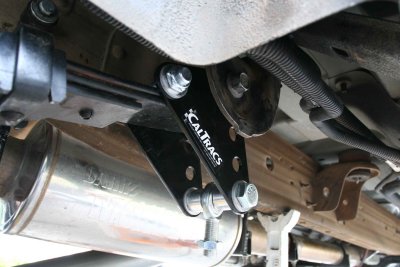

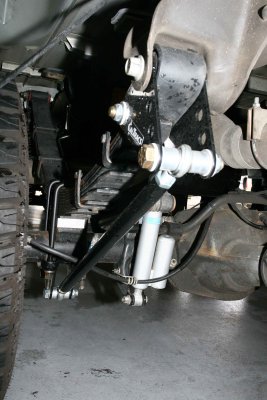

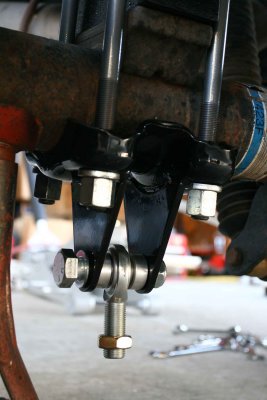

U-bolts and new Axle Bracket installed		 Close-up of new Axle Bracket

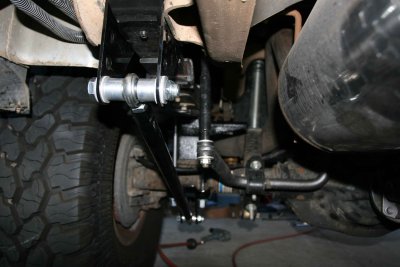

Close-up of new Axle Bracket		 Lower Truck and Install Threaded Bars

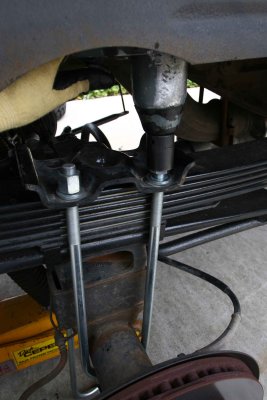

Lower Truck and Install Threaded Bars		 Set preload per instuctions
Set preload per instuctions

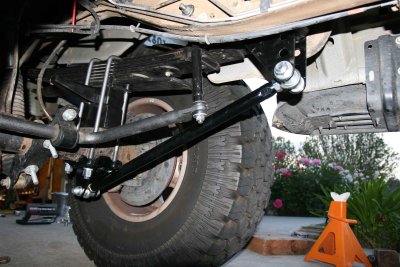

Finished Install
Finished Install		 Finished Install

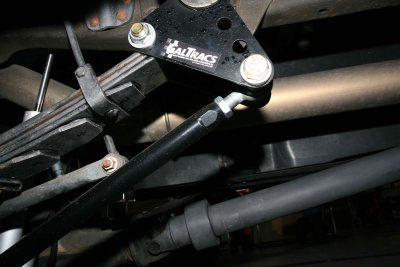

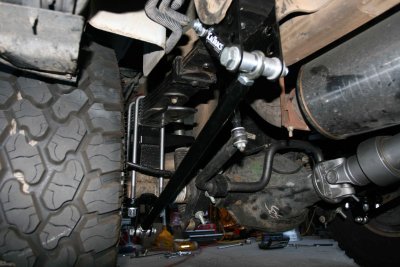

Finished Install		 Install on 05 F-350 w/ Deaver Springs & 37's (1)
Install on 05 F-350 w/ Deaver Springs & 37's (1)		 Install on 05 F-350 w/ Deaver Springs & 37's (2)

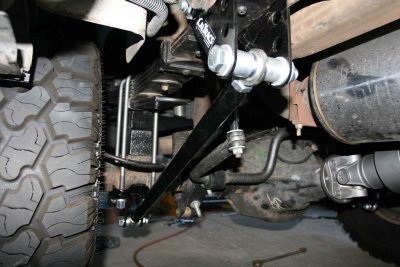

Install on 05 F-350 w/ Deaver Springs & 37's (2)
Install on 05 F-350 w/ Deaver Springs & 37's (3)
Install on 05 F-350 w/ Deaver Springs & 37's (3)		 Install on 05 F-350 w/ Deaver Springs & 37's (4)
Install on 05 F-350 w/ Deaver Springs & 37's (4)
