Saw Vise and Brackets

This crosscut saw vise can be clamped to a bench. I clamp it to a fixed wood plank about 48" high and use a 6" high step/platform on the floor if I need the vice lower in relation to me.

The vise can be clamped to the brackets in the vertical, sloped back 45 degrees or horizontal positions.

The advantages are:

It is only four feet long but will easily hold 7' and longer saws.

It will hold a one man saw without taking the D handle off.

It takes up very little space.

It is very cheap to build.. Just 4' of 2x10 and some odd pieces and bracket and clamps for mounting on a bench..

It is open faced. It can be placed horizontal to work on a face or for setting teeth.

It clamps to a bench and the height of the filer is easily adjusted with a simple step.

Probably the main disadvantage is that long saws will need the be shifted end wise to work on the very ends but that just takes a couple seconds.
With oneman saw
With oneman saw
Vertical position, Seven foot long saw
Vertical position, Seven foot long saw
In the laid back position
In the laid back position
Horizontal posiion
Horizontal posiion

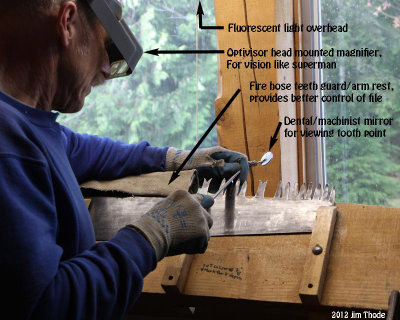

In use
In use
Horizontal use
Horizontal use

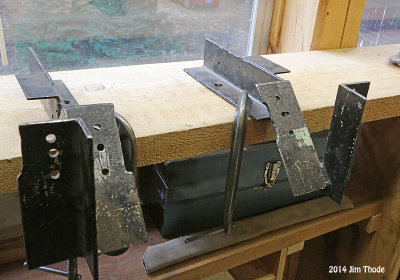

Pair of brackets clamped to a plank/work bench.
Pair of brackets clamped to a plank/work bench.
Pair of brackets clamped to a plank/work bench.
Pair of brackets clamped to a plank/work bench.

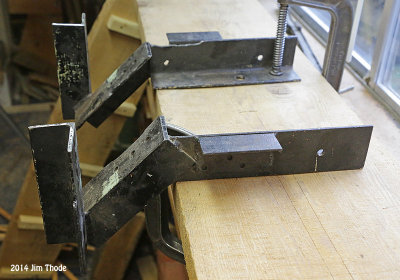

Bracket details
Bracket details
Bracket details
Bracket details
Clamped in the 45 degree sloping position
Clamped in the 45 degree sloping position
Vice detail - front
Vice detail - front
Vice detail - back
Vice detail - back
For a longer saw
For a longer saw
Wedges for Saw Vice
Wedges for Saw Vice
Wedges for Saw Vice
Wedges for Saw Vice
Wedges for Saw Vice
Wedges for Saw Vice
Wedge Detail
Wedge Detail
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever
Saw Vise Single locking lever

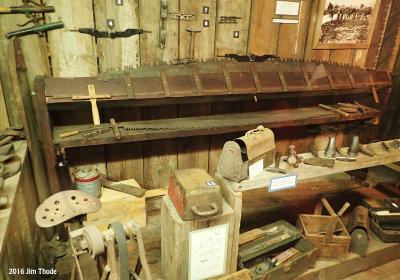

Saw Vise Lewis County Museum
Saw Vise Lewis County Museum
Saw Vise Lewis County Museum
Saw Vise Lewis County Museum
