20ddissection Photo Gallery by PeeBaseGuy at pbase.com

I was on honeymoon in HI a few weeks back (09/2006). While walking along the shore, I slipped on some algae/seaweed covered rocks and fell. My arm (holding the camera) bore the brunt of the fall, but the right hand (holding the camera) hit a shallow tidal puddle. Only a bit of the camera got wet in the ocean salt water. Mostly on the rear, near the battery cover (the water didn't even reach the bottom of the LCD on the rear of the body). This killed the camera immediately. I took it back to my hotel and let it dry out (a huge mistake). It never worked again. When I got home, I sent it to Canon to see if they could repair it. They totaled it and sent it back un-repaired. When I received it, I decided it would be cool to take it apart and document what I found.

Luckily, the camera was insured, so I upgraded to a 30D when I returned home. I used the new 30D to take the photos of the dead 20D.

pages 1 2 3 4 5 6 7 8 9 10 11 12 ALL

Back cover removed	Back cover, bottom right.	Back cover, thumb-wheel control.	Back cover, left side.
Camera body, back cover removed.	Computer board - detail.	Below LCD - detail.	Um...I forget what this image is - detail.
Left side, rear removed.	Left side, closeup.	Face removed	Plastic bottom piece removed
Detail - behind/below battery door.	Front of the grip removed.	Detail - underside of the top plastic cover/flash housing.	The view from above.
Underside of the top plastic piece/flash housing.	Top view	Flash housing - detail	Left side, wire detail
Un-solder again.	Rear view. Digic circuit board visible on left.	Digic circuit-board rear (faces rear of camera), removed	Digic circuit-board rear minus cover 1
Digic circuit-board rear, minus cover 2	Digic chip, detail 1	Digic chip, detail 2	Digic circuit-board rear, minus protective covers
Digic circuit-board rear - small chips.	Digic circuit-board front (faces front of camera)	Digic circuit-board front, minus cover	Digic circuit-board, front closeup 1
Digic circuit-board, front closeup 2	Digic circuit-board, front closeup 3	Interlude 1	Interlude 2
Interlude 3	Interlude 4	Interlude 5	Closeup - rusty screw

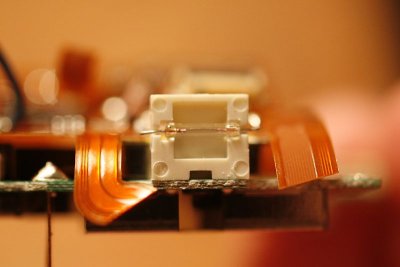

Circuit board crusties	More circuit board crusties.	Wire detail 2	Thar she blows!

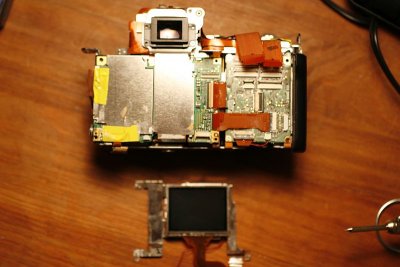

Close up on camera body and image sensor.	Sensor removed	Mmmm. Shiny.	Rear shot.
A little bit brighter now...	From the front.	Dremeled circuit board	Dremeled circuit board - rear view.
Dremeled circuit board - under the cover.	Dremeled circuit board - under the cover - close-up.	View from the bottom	CF card slot
Bare frame, close-up	Not quite as bare up front.	Speaking of ribbon cables...	Right side view
Left side view.	Same shot, slightly different angle.	Another shot of the rear of the body.	Interlude 6
From the bottom	Screens out	screens - close-up	Focus indicator screen
Going for broke now.	Frame removal	Frame - detail.	Back of camera with frame removed.
Front of camera after frame removal.	Capacitor connection points.	Toe tag.	Shutter button wiring
This was under the top LCD	Side view. The parts against my thumb are the leads that go into the battery compartment.	Focus assist/self timer light.	Different view.
Board with outer wiring removed. (From under the top LCD screen).	Side view showing battery leads.	Underside of that same board. Battery leads have been un-soldered.	Close-up of chip on bottom of same board.
Area around viewfinder (with wires).	Area around viewfinder (without wires).	Closeup of little round glass thingy (was just under a sensor).	Area just above viewfinder. Small rectangular mirror-looking thing in the center.
Close-up of small rectangular mirror looking thing.	Sensor 1 (for lack of a better name). Was clipped in place on top of the viewfinder.	Sensor 1 again.	Another sensor 1.
Sensor 2. This one clipped in to the left of the viewfinder.	Sensor 2 again.	More sensor 2.	The view through the prism
Prism and shutter.	Eyepiece removed.	Shutter with frame removed.	Shutter frame
Prism	Shutter removed. Prism and back side of mirror.	Back side of mirror, detail.	Viewfinder information screen (note over/under exposure meter, and other goodies).
Viewfinder info screen, shown flipped down from it's original location.	View of the bottom of the lens mount area. No idea what that dirty mirror does, but it looked like crap (corrosion?).	Bottom view again.	View through the body, out the prism.
View throught the body, different focus point.	Closeup of dirty mirror thing from bottom of lens mount area.	Left side. Lens mount side facing down	Right side. Lens mount side facing up.
Bottom view (with dirty mirror).	Rear view. Most removable stuff removed.	Another shot of the back of the shutter and it's frame.	Front side of the shutter. (This side faces the front of the camera and the lens.
Side view of shutter. Front is down. Back is up.	Other side of shutter showing...? (Shutter motors for 1st and 2nd curtains?).	Prism removed.	Prism detail.
View through the prism.	Not much left of her, is there?	Full-sized crop of what I call "Sensor 2"	Another full-sized crop of Sensor 2.
And another.	Sensor 1, full crop. Most likely the 35 zone metering sensor, from what I've been told.	Sensor 1, another full crop.	A better shot of "Sensor 1". Used the tripod this time!
A better shot of "Sensor 2". Also shot with the help of the tripod.	AF mechanism(?). Was on the bottom of the body, near the lens mount. The mirror (seen above) faced the front of the camera.	This is the top of the AF mechanism from the last shot. Recognize the pattern of slots?	AF mechanism deconstructed. AF sensor is on the top of this image.
Prism box that makes up the heart of the AF mechanism.	Zoomed-in view of the AF sensor	Extra close-up of the AF sensor. Lighting angle #1.	Extra close-up of the AF sensor. Lighting angle #2.
View throught the prism box showing the openings which allow light to hit the AF sensor.
