Remove four screws holding in panel
Center stud has to be released from tab

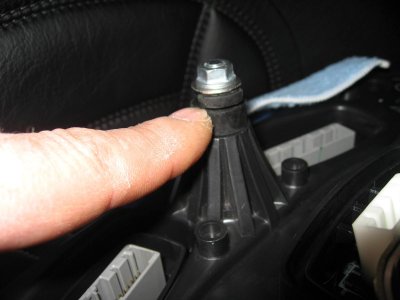

Tab that center stud and grommet fit on
Reach under panel and pull off rubber boots and release center connector
This is how the connector release works
First release the center connector, then you can lift up the meter panel to get the other two off
Turn Signal relay is located behind the meter panel
Meter Panel removed
Back side of meter panel
Here is the brace after I made the second cut made to remove an additional 1/8th inch
I cut the meter panel brace to facilitate easier removal of top bridge in future
