InterNatrix Motorcycle Alarm

InterNatrix alarm. This is what comes in the box	The Remote and Pager are built into one unit	Alarm Horn	Alarm brain, microwave motion sensor and cables
I remove the gas tank on the Concours and mounted the brain on the inside of the rear fender under the tank	Self adhevice foam on the alarm lets you peel and stick	Cable harness	Main connector to alarm brain for power and turn signals
I am going to mount the alarm horn in this hole on the right side of the bike under the gas tank,. Gas tank removed in photo	Peel and stick alarm horn	Locating alarm horn	Plugging in microwave motion sensor

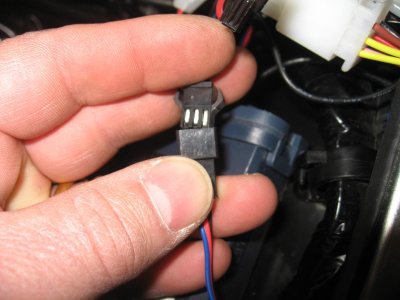

Microwave motion sensor located on top of KIPASS reciever	Horn connector and main connector	Flashing LED connector	Remote uses a single AAA battery

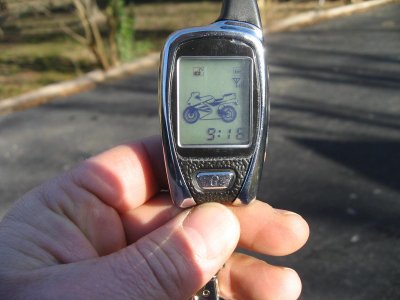

Remote	I removed the pin for the rear turn signals from the connector and piggy backed the yellow wire from the alarm on it	Yellow wire connection from alarm made to rear turn signal	Rear turn signal connectors are found behind the ECU in the bikes tail section
Alarm mounted	With the gas tank reinstalled, the alarm is located underneath it, and out of sight	LED installed by ignition
