 Seat removed |
 Rear brake reservoid and fuse box |
 More fuse boxes, and tool kit tray |
 Removing front bolt |
 Removing front bolt |
 Removing brace under glove box |
 Removing rear bolt |
 Fuel line on tank |
 Release the two tabs, and slide the orange lock out to release the connector |
 Fuel line connector in the fastened position |
 High Pressure Fuel line connector in the released position |
 Grommet for side panel |
 Stud in side panel goes in grommet in tank |
 Stud position on right side, note heat sheilding |
 More heat sheilding |
 Fuel pump connector |
 Sending unit connector |
 Release tab, pull apart connector |
 Gas tank removed |
 Gas tank removed |
 Panel removedl |
 Battery terminals |
 Battery removal |
 Battery |

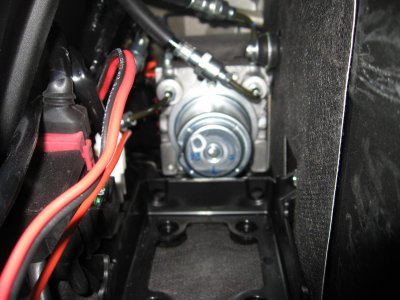

 ABS pump is behind battery |
 Cover panel for battery and ABS pump |
 GasTankVent 001a.JPG |
 GasTankVent 002a.JPG |
 GasTankVent 006a.JPG |
