 This is a simple terminal block I bought at a surplus electronics store for $1.00 |
 I cut the block in half, added a bus bar down the center, and attached it to the battery with double sided foam tape |
 I connected the other half of the terminal block to the positive side of the battery, through a 15amp fuse |
 Here you can see both halves mounted on the battery |
 The plastic shield covers the positive terminal block |

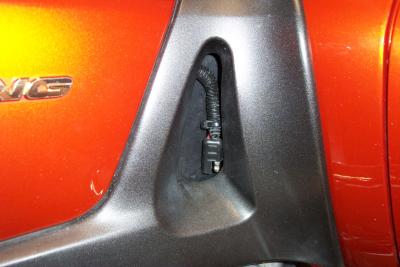

 This is my connector for my Battery Tender |
 Cleaning off the contact area for a new frame to engine ground |

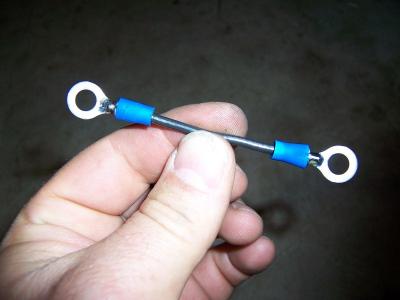

 30 amp ground lead |
 Connected betweed G2 ground and new ground point on frame |
 New engine to frame ground installed |

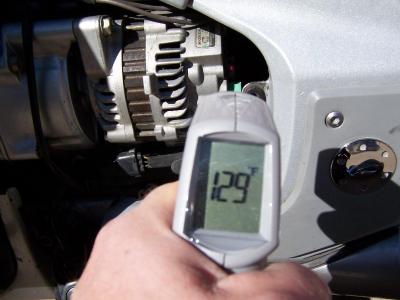

 Rear alternator bearing temp |
 Front alternator bearing temp |
 Rear alternator bearing temp |
 Lascar Electronics Digital Voltmeter |
 Voltmeter 011a.JPG |
 Yuasa.jpg |
