Tarpon 120 Kayak Wheels

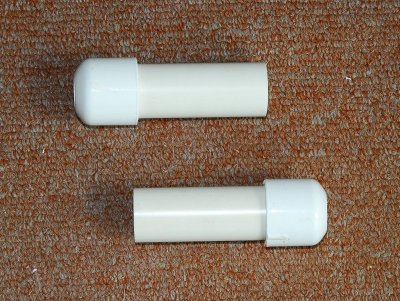

Here are all the pieces	Exploded view	First glue the wheel caps to the 3" x 3/4" spacers	Completed

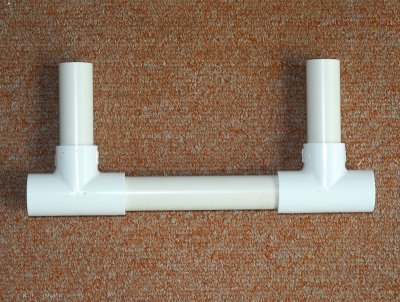

Glue the 3" x 3/4" upright spacers to the axle Tees	Glue the 6 1/2" x 3/4" axle spacer to the two Tees	Completed	Glue the 10" x 3/4" Scupper hole shafts to the spacer Tees
Completed	5" Foam padding - Pool Noodle and 6 1/2' x 3/4" spacer	Spacer inserted into padding	Insert, but don't glue, the spacer into Scupper shaft Tees
Completed	Glue end spacers to axle	Completed Axle assembly	Glue Scupper shaft Tees to Axle Assembly
Completed - ready to paint	Axle hardware	Axle rod and washers inserted, ready for 10" wheels	Completed Assembly
Side view	Check fit on Tarpon 120	Completed	Scupper shaft tops behind seat
Final assembly - painted	Finished wheels - ready to roll	Wheel Kit Tarpon 120.jpg
