Q-Logic Kick Panels

Preparation and installation of the kick panel replacements with 5 1/4" Infinity components.

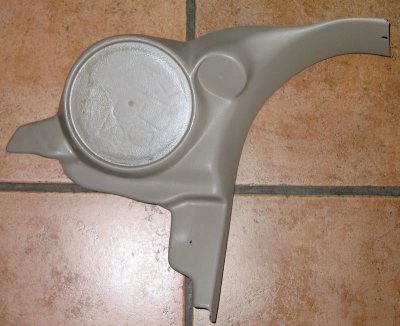

Q-Pod right, matching the medium parchment interior
Q-Pod right, matching the medium parchment interior		 Q-pod left
Q-pod left		 Replacement grills - drove over the first set :-)

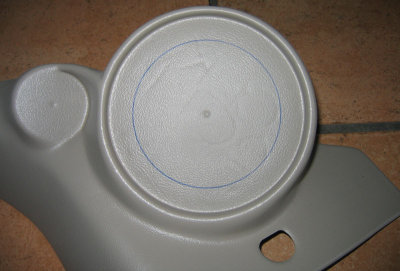

Replacement grills - drove over the first set :-)		 Drawing the 120mm(!) outline
Drawing the 120mm(!) outline

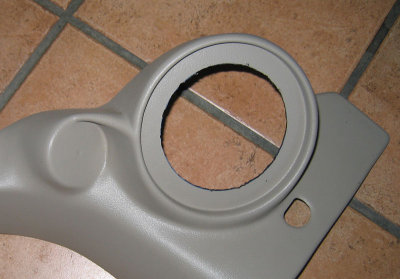

After Dremel treatment
After Dremel treatment		 Tweeter flush install, angled upwards

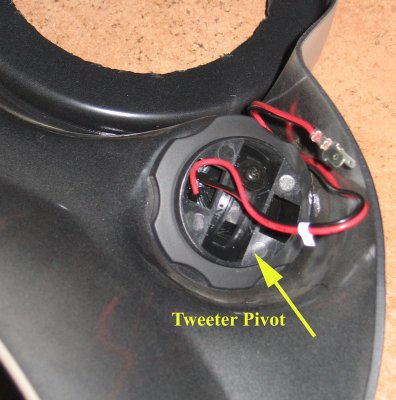

Tweeter flush install, angled upwards		 Tweeter pivot mechanism from the back

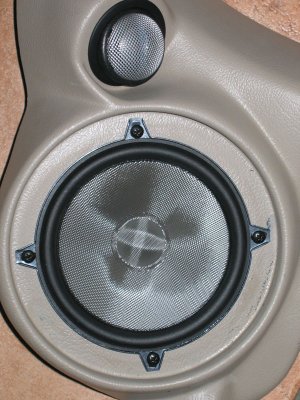

Tweeter pivot mechanism from the back		 5 1/4 Kappa installed
5 1/4 Kappa installed

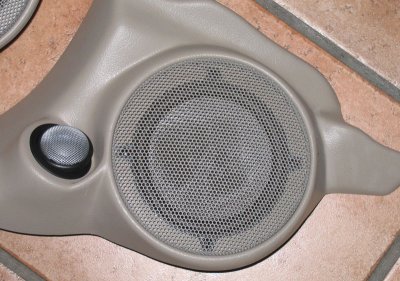

Finished pod !

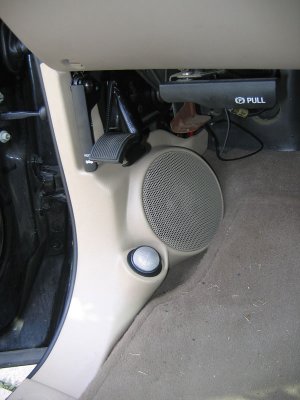

Finished pod !		 Driver side installed

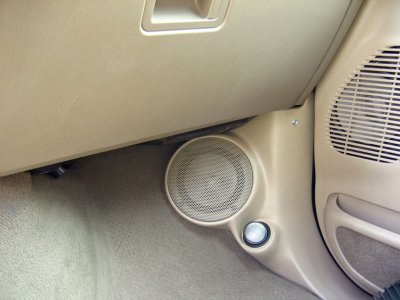

Driver side installed		 Passenger side proved to be a little challenging..
Passenger side proved to be a little challenging..
