Electrical Upgrades

Installed an improved wireharness for headlights and foglights, routing battery power directly to the bulbs with 4 individual relays. Did the Marinco plug modification to bring out the block heater to an outlet in the front bumper. Simply plug in an extension cord. 3-Gauge A-pillar pod with EGT, Transmission temperature and Boost pressure. I can highly recommend www.dieselmanor.com. Their installation kit was super complete and the instructions were well illustrated and exquisitely detailed.
previous pagepages 1 2 ALL next page
Plug in the extension cord and pre-heat the block

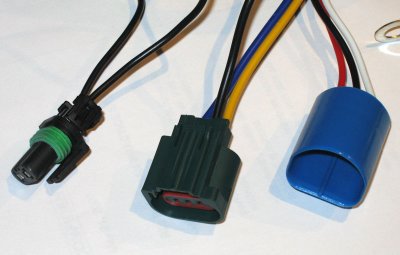

Plug in the extension cord and pre-heat the block		 Conversion harness for head and foglights. The blue connector to the factory '04 plug. Black to '05 headlight, green to fogs

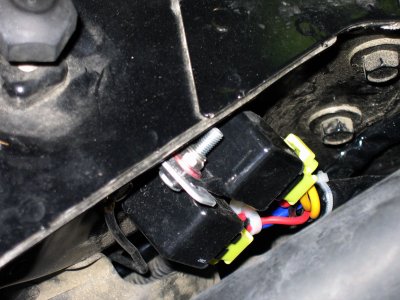

Conversion harness for head and foglights. The blue connector to the factory '04 plug. Black to '05 headlight, green to fogs		 Headlight & fog relays left
Headlight & fog relays left		 Headlight & fog relays right
Headlight & fog relays right

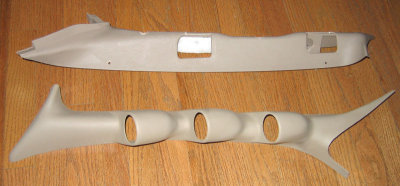

Gauge pod painted and stock A-pillar cover
Gauge pod painted and stock A-pillar cover		 Gauges mounted and wired
Gauges mounted and wired		 Right time to wire Bluetooth mic, alarm antenna, and power lead for stealth radar detector.
Right time to wire Bluetooth mic, alarm antenna, and power lead for stealth radar detector.		 Gauges mounted.

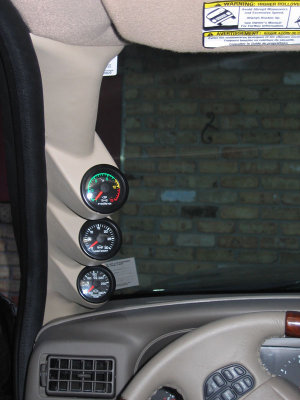

Gauges mounted.

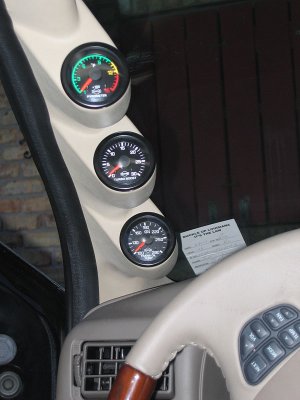

Gauges close-up.

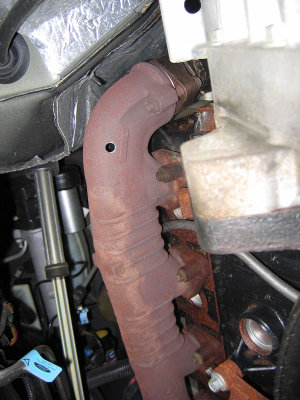

Gauges close-up.		 Exhaust manifold drilled and tapped.

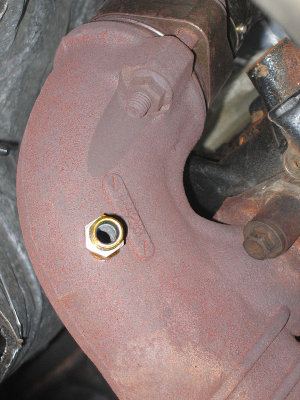

Exhaust manifold drilled and tapped.		 Nut installed.

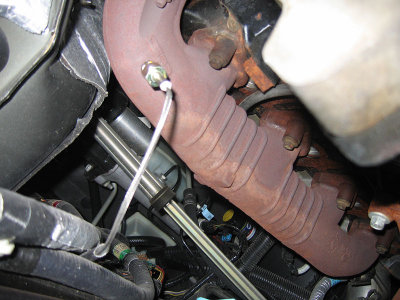

Nut installed.		 Temperature probe mounted.
Temperature probe mounted.
