Oil Filter Housing Bracket replacement to fix oil leak on my 2008 Audi A3

May 16, 2024 through May 21, 2024

I used this DIY article to help me https://www.pelicanparts.com/techarticles/Volkswagen_Golf_GTI_Mk_V/39-WATER-Replacing_Your_Oil_Cooler/39-WATER-Replacing_Your_Oil_Cooler.htm

I also used this article https://www.vwvortex.com/threads/fsi-bpy-oil-filter-housing-and-oil-cooler-gasket-replacement.9385559/

I found this YouTube video helpful too. https://youtu.be/4U4OFeU38mo
https://www.motoringculture.com/2020/03/audi-a3-20-fsi-oil-cooler-gasket.html

I removed the radiator fan and shroud assembly and drained the oil from the filter assembly.
I removed the turbo air pipe and intercooler hose, drained the coolant, removed two badly deteriorated coolant hoses going to the Auxiliary Water Pump and removed the Throttle valve.
I removed the Oil Cooler and the old Crankcase Breather hose.
I am having a little trouble removing the Oil Filter Bracket.
I finally removed the Oil Filter Bracket.
It looks like the oil leak is from the back of the bracket where the gasket is broken.
Installed a new Febi Bilstein 06F115397J Oil Filter Housing Bracket, Oil Cooler, and reconnected all the electrical connectors.
Drained coolant, and oil, Installed Pentofrost E G-13 coolant, and Installed Liqui Moly 5W40 Molygen Engine Oil.
I have the Throttle Valve to install to the Intake Manifold and also to install the Radiator Fans and Shroud.
It feels good to finish this job.

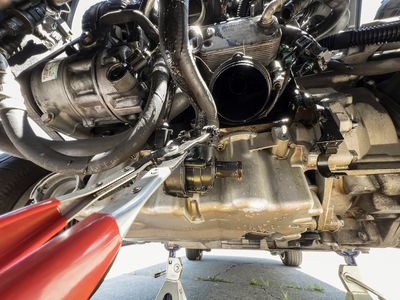

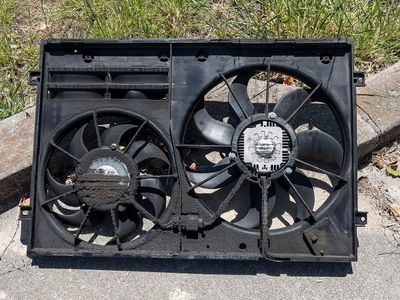

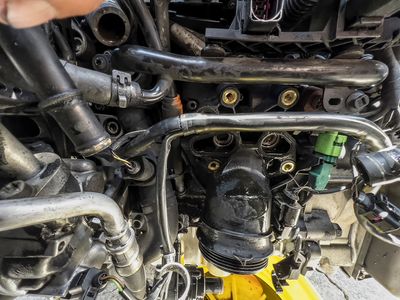

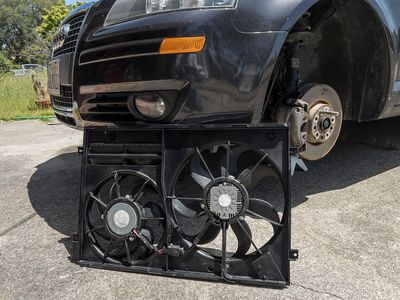

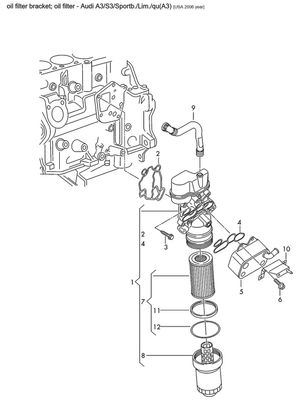

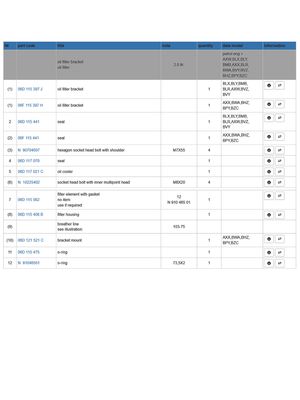

Oil Filter Housing Bracket parts	Oil leak				I removed the radiator fan and shroud assembly

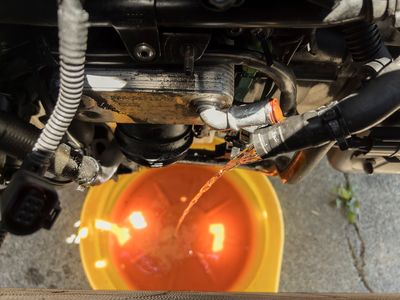

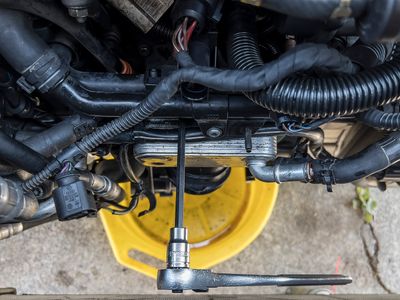

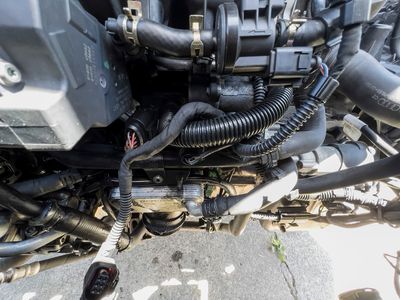

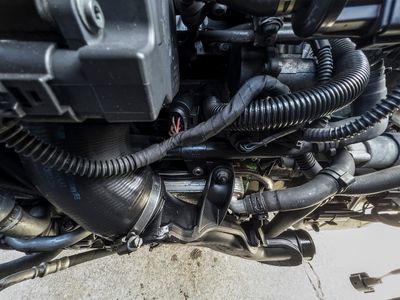

Turbo boost hose before removal	Turbo boost hose removed	Draining the coolant	Removing the badly deteriorated coolant hoes going to the Auxiliary Water Pump	Removed the Throttle Valve	Limited amount of room to work

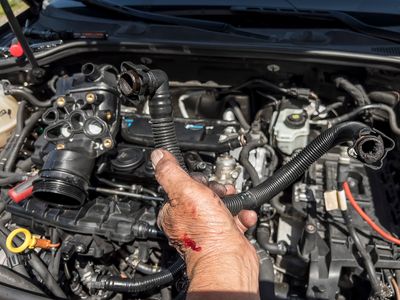

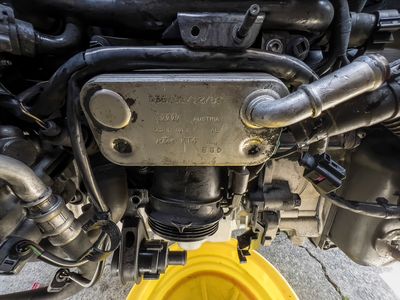

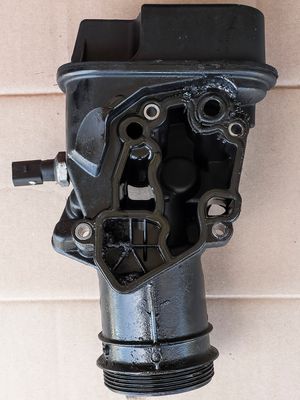

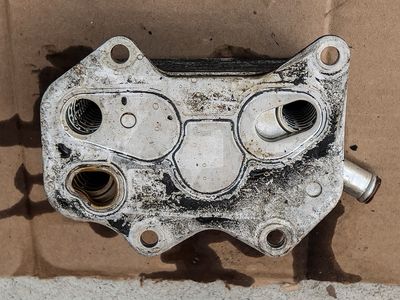

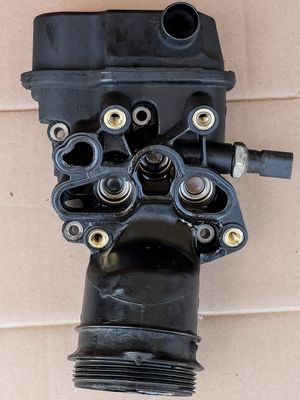

Oil Cooler	Oil Cooler removed	Back of the Oil Cooler	I removed the old Crankcase Breather hose	Old Oil Filter Bracket 06F 115 397 H front	Old Oil Filter Bracket 06F 115 397 H back

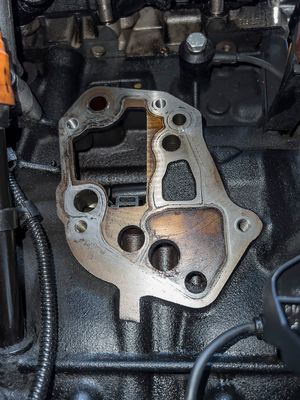

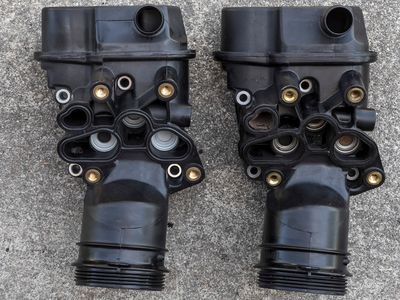

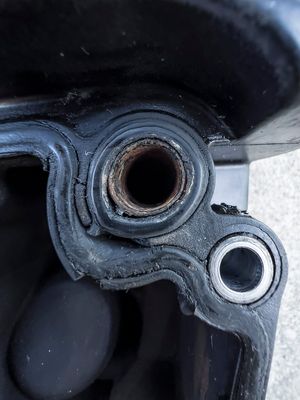

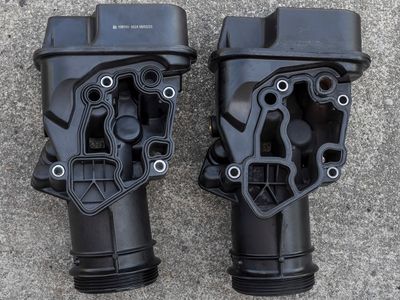

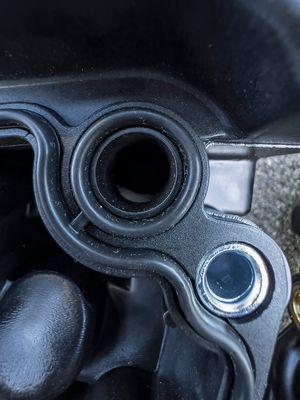

Old Oil Filter Bracket 06F 115 397 H Broken oil channel	New Oil Filter Bracket 06F 115 397 J Oil channel	Oil Filter Bracket 06F 115 397 H Back New on the Left and Old on the Right	Oil Filter Bracket 06F 115 397 H Front New on the Left and Old on the Right	Oil Filter Bracket mouint on the engine block	Installed new Oil Filter Housing Bracket

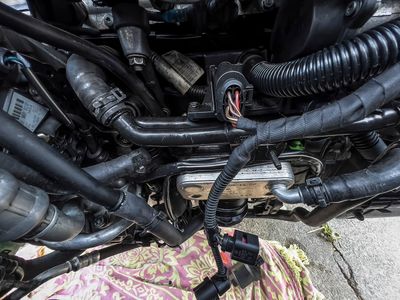

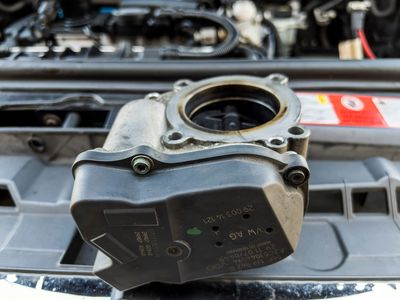

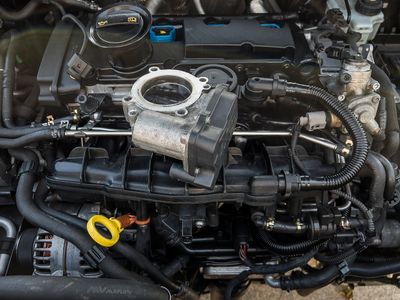

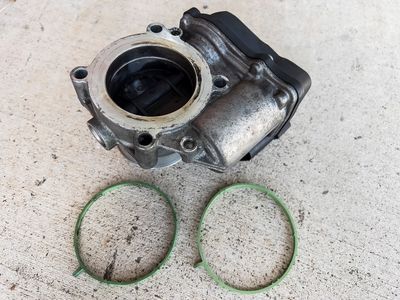

Installed Oil Cooler and reconnected all the electrical connectors.	Drained oil and refill with Liqui Moly 5W40 Molygen Engine Oil	Adding 5 Liters of Liqu Moly 5W-40 Molygen engine oil	Adding 1 gallon Pentofrost E G-13 coolant	Throttle Valve with old and new gaskets	Ready to install the Throttle Body to the Intake Manifold

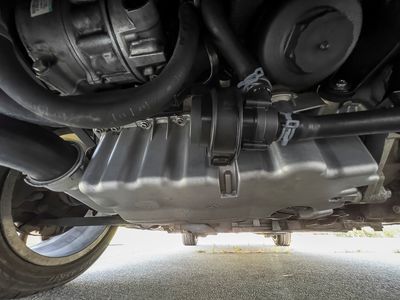

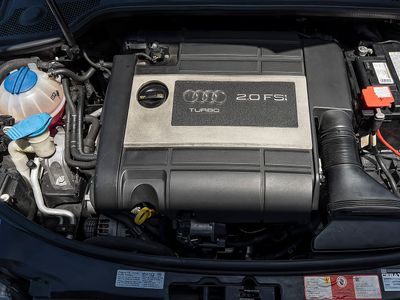

Ready to install the Fan Shroud	Ready to start the engine	Engine oil pan is now clean
