Jason's ThunderRanch 550A Turbo

This is one good-looking TR! Jason built this car himself and his attention to detail is a step above!

ThunderRanch 550A Spyder
Manufactured in 2002

> EXTERIOR -- : Mercedes Benz Quartz Silver w/ Dodge Viper Red Darts with 1/8" GMC Gold Pinstripe
> INTERIOR -- Dario’s red striped vinyl seats & red vinyl--firewall and rocker panels, Aluminum panels on floor and wheel wells

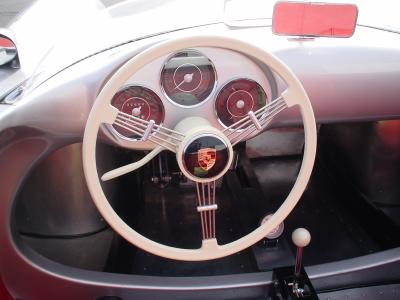

> GAUGES -- 356 (replica) (Speedo 0-200K, Tac 0-6K, Combo Gas & oil temp gauge), Autometer Boost Gauge mounted to center tunnel
> STEERING WHEEL -- Banjo (replica)
> SEAT BELTS -- G-Force red harnesses
> FRAME -- Tubular custom manufactured by ThunderRanch
> SHOCKS -- Gabriel gas charged front shocks, Gabriel rear shocks painted Viper red
> ENGINE -- 215hp,1.9L (1915cc) Type 1 Turbo Motor Remote, Schwitzer S1 Turbo, Bergmann 911 Style fan Painted with Flames, Blitz Blow Off Valve, Dual 44 IDF Weber Carb Kit w/ Pro-Comp Manifolds, Hi-Flow oil filter and external oil cooler with polished EVERYTHING!! Built by CB Performance
> SHIFTER -- Jamar hi-performance rod shifter
> TRANSMISSION -- Prostreet Transaxle 3.88 Ring and Pinion Welded Hubs on 3rd and 4th
Hardened Side Cover Gears: 1: 310, 2: 193, 3: 126, 4: 089 built by Rancho
> EXHAUST -- Jet Hot Coated Headers, Jet Hot Coated Turbo Exhaust Housing
> IGNITION -- 009 Distributor W/Perlux Electronic Ignition, Bosch (HD Blue) Coil
> BRAKES -- Stock '67 bug front & rear brakes with drum skins
> WHEELS Mangle wide 5 lug wheels powder coated silver 15X4.5" front, 15X5.5" rear
> TIRES -- Kuhmo Tires 165SR15 fronts, 205/60R15 rears
> WEIGHT -- 1250lbs. (dry)


> OWNER -– ?
Jason's 1915cc Turbo Engine
Jason's 1915cc Turbo Engine
Jason's aluminum work
Jason's aluminum work

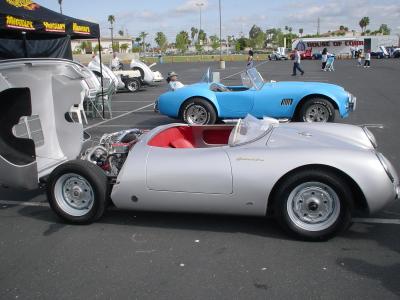

Jason's TR
Jason's TR

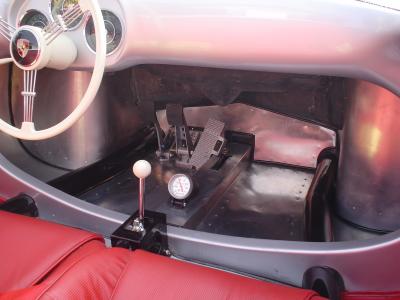

aluminum interior
aluminum interior
