Passenger Seat Swivel Plate & Base mods
New base - needs a lot of work
When swiveling, runs into the door
With seat mounted, door squishes armrests
Top of seat hits the visor
Swivel Seat mods - Moved base to the left an inch
Swivel Seat mods
Now it clears the door
Moved base as far left and to the rear as possible
Now things clear
and head rest misses visor and headliner
Swivel Seat mods
Swivel Seat mods

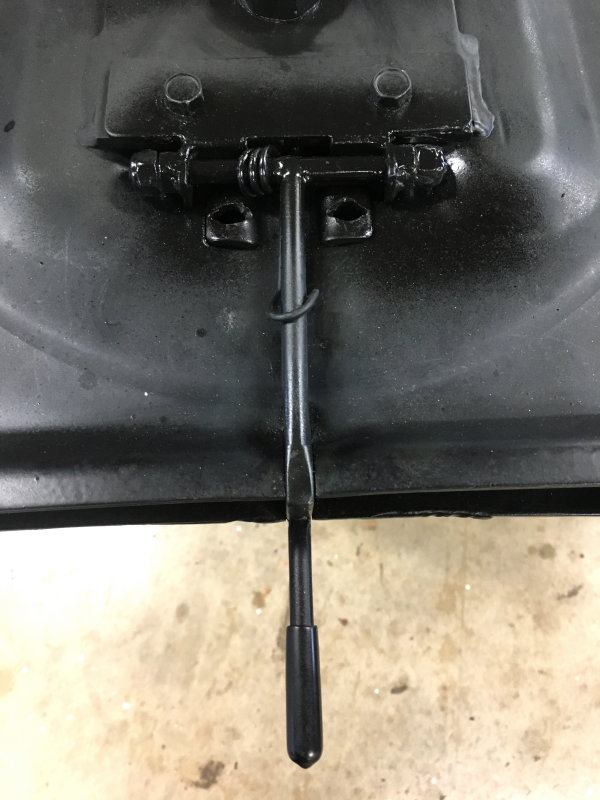

Latch rod too long!
Removed excess metal
Finished
And repainted
Mounted - details
Mounted - details
Prep to lower base as swivel is 1 3/4" thick - Driver Seat Base for comparison
Shortened Passenger Seat base
Shortened Passenger Seat base with Swivel
Painted base in place
Base Completed
Rear Facing, though it's 1 3/4" lower, it's still comfortabe in this position
Seat Swivel Plate - Latch Mods - Original sloppy latch
Seat Swivel Plate - Latch Mods - New latch
Seat Swivel Plate - Latch Mods - Set in place
Seat Swivel Plate - Latch Mods - Full block
Seat Swivel Plate - Latch Mods - Initial mounting
Seat Swivel Plate - Latch Mods - Mounted, painted
Seat Swivel Plate - Latch Mods - Fully latched
Seat Swivel Plate - Latch Mods - Unlatched
