Solar Panel installation on Motorhome (2010)
2 80 Watt Sharp panels; 160W
Frame details

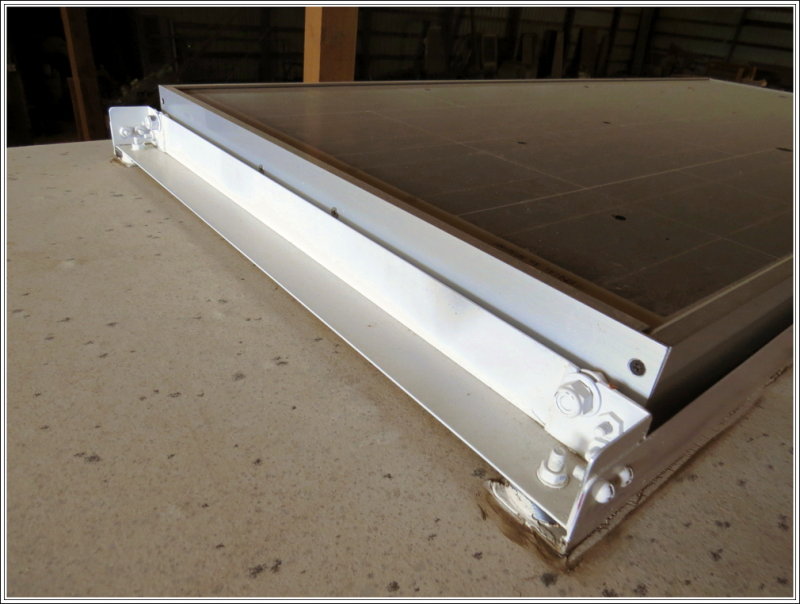

Frame details
Frame details
Frame details
Frame details
Mounted as far forward as possible
Electrical connection
Electrical connection
Connector mounted into hollow frame
Wires run through frame & drop into cabinet
Down inside cabinet, then into a flat conduit
Down between dinette & drivers seat
Into the front dinette bench

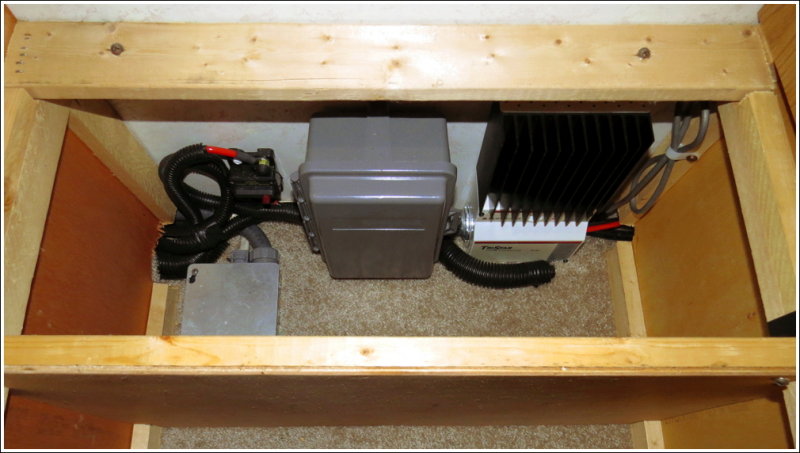

Boxed off area for controller, switch & fuses
Mains circuit breaker
Switch to shut off both sides - panels to controller, battery to controller

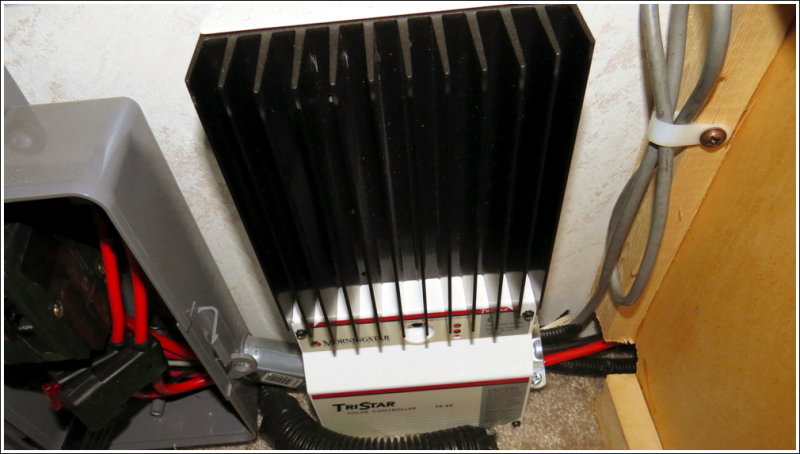

Morningstar Tristar PWM 45 Amp
