27-JAN-2004

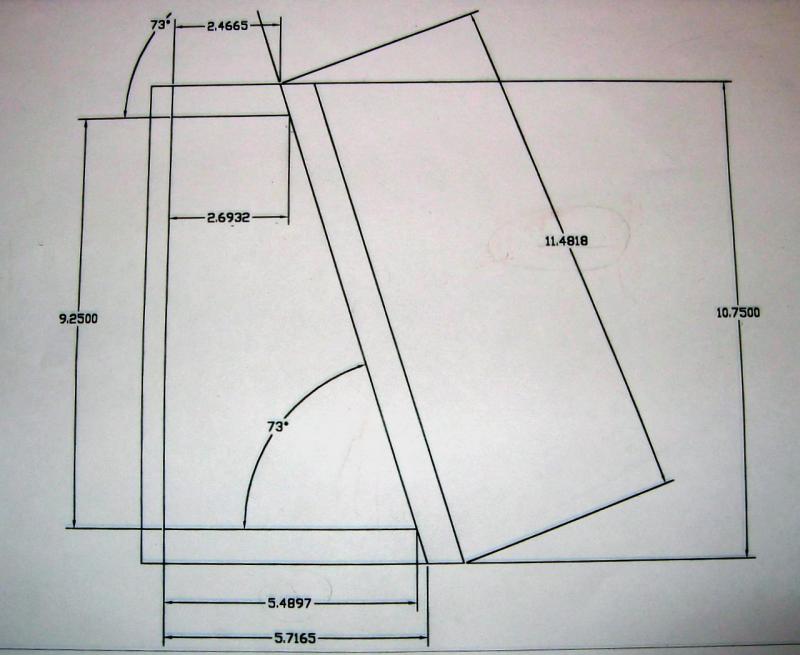

This is the exact measurements for my PRESSURE FITTED sub box. 1/8 of an inch taller and you can toss the box in the garbage!

Every dimension is here except for width. As for overall width, depending on the drivers used, it is how you decide how much volume it will have. BTW the diagram came from an CAD machine...it is why it is so accurate! Every other dimension is EXACT and will allow the box to get carpeted and PRESSURE FITTED to the back wall of a 2003 Nissan Frontier Crew Cab.

Canon PowerShot S400
1s f/7.1 at 7.4mm with Flash full exif

other sizes: small medium large original auto

previous | next

All photographs and text by Brian Chang appearing in this picture page are the exclusive property of Brian Chang.

comment |

Kyle Farris		13-Nov-2007 05:11
I was looking at your box measurements and was wondering what the mounting depth of your L7's was? I built a box very similar to yours for my 02 Frontier about a year ago. I have two Pioneer Premier shallow mount 10's in it. I just didn't think of the latch trick.
