Cuddy Portlights

Fabrication and installation of portlights for cuddy.
Portlight frame of 3/8 plywood in glueup phase.
Portlight frame of 3/8 plywood in glueup phase.		 Blind nut recesses will go to the outside. SS nuts in 10-24 thread.
Blind nut recesses will go to the outside. SS nuts in 10-24 thread.		 Routing recess for 3/16 polycarbonate window material.
Routing recess for 3/16 polycarbonate window material.		 Sloppiest, worst glass job I ever did. Strips would have been better and easier to sand and surface.
Sloppiest, worst glass job I ever did. Strips would have been better and easier to sand and surface.
More System 3 LPU; bolts to keep threads open underneath.

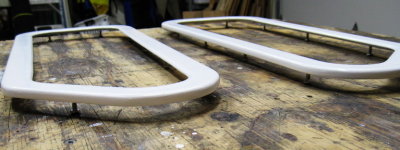

More System 3 LPU; bolts to keep threads open underneath.		 Backsides.
Backsides.		 Corner detail; bolts in place.

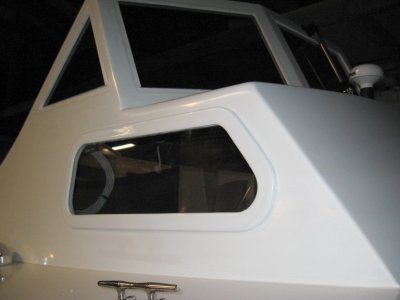

Corner detail; bolts in place.		 Installed and bedded.
Installed and bedded.
