Tee-Nut Uses

Tee nuts on backing under aft floorboard for securing engine box hinges.	Detail, starboard side: underside of floorboard and inside of engine box . Hinge is obscured.	Overall view of both hinge placements, underside; starboard side is to left in photo.	Hinge view, with box tilted back; starboard side is to right in photo.

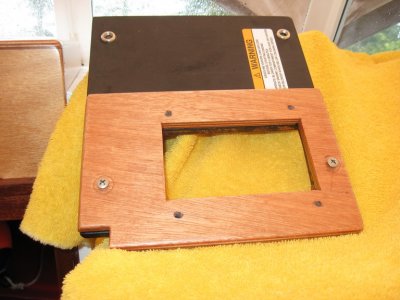

More tee nut stuff: New helm plate installation.	Underside of existing helm plate; new 10-24 tee nuts to right (port side).	Plates mated; port side view; plywood piece indexes vertical helm panel.	Detail of final installation; tee nuts barely visible in joint.
Quarter-20 tee nuts secure rod holder mount, starboard aft coaming.	Mount inside coaming,	Scotty rod holder in place in fishing rod mode.	Now it's a pivot dowel holder.

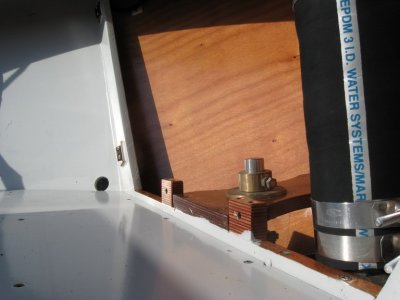

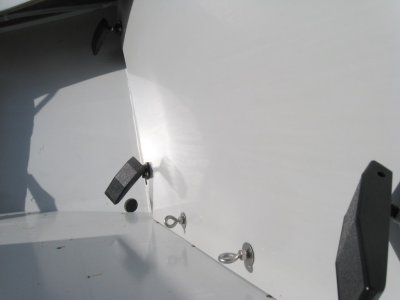

for a reel of stern-tie line!	Or, a pulley to ease hauling anchor line or crab pot line over the side.	Fourth T-nut app: ringbolts seal lower edge of frame 12 panel against leakage.	Plywood tangs have T-nuts.
Back side of starboard tang.
