25-APR-2007

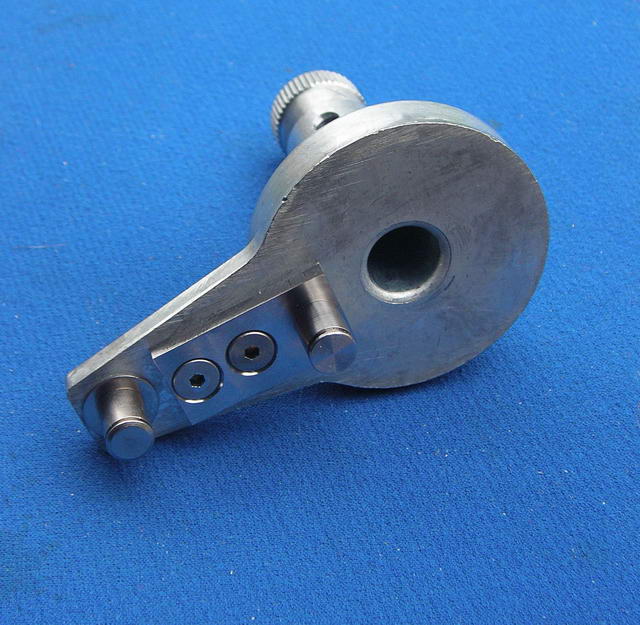

Throttle arm inside single lever control; added pin did not work well

Added pin matches cable travel to arm rotation, but too much slop in system and slow throttle response mandated replacement with dual lever system. Simpler and more reliable.
