Cockpit

Completion of cockpit details: hatches, painting, layout.

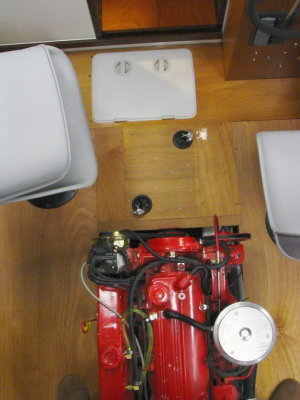

Cockpit completed, Note pedestal seats later removed: too bulky and inconvenient.
Cockpit completed, Note pedestal seats later removed: too bulky and inconvenient.		 Bilge access hatch in gray plastic; battery box hatch lid in wood, with black latches.
Bilge access hatch in gray plastic; battery box hatch lid in wood, with black latches.		 Battery box open.
Battery box open.		 Bilge access open.
Bilge access open.
Closeup of bilge.
Closeup of bilge.		 Floorboards in painting stage; System 3 2-part LPU good for this.
Floorboards in painting stage; System 3 2-part LPU good for this.		 Coaming and inside of hull masked for painting.
Coaming and inside of hull masked for painting.		 Cockpit painted and assembled, Pedestals later removed.
Cockpit painted and assembled, Pedestals later removed.
Back to work. Frame 12 opening, ready to receive panel.
Back to work. Frame 12 opening, ready to receive panel.		 Dry fit of panel and latches.
Dry fit of panel and latches.		 Latch closed.
Latch closed.		 Latch open; Southco makes these. From McMaster-Carr.
Latch open; Southco makes these. From McMaster-Carr.
Latch andhor, lower port corner, bedded and screwed.
Latch andhor, lower port corner, bedded and screwed.		 Anchors installed.
Anchors installed.
