Sliding Rear Window

Modifying a Toyota pickup rear sliding window to fit an AW11.
Lesson learned: Do not raise the height of the aluminum frame as shown. Adjust the shoulder of the top frame section and extend the flanges on the top and bottom to make up the height difference.
previous pagepages 1 2 ALL next page

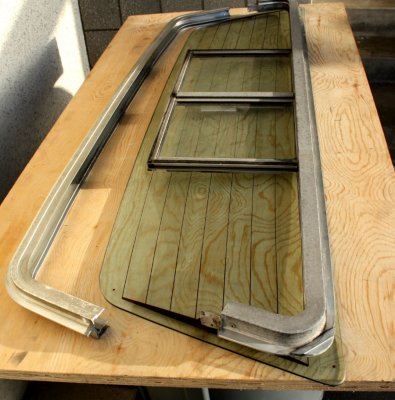

aw11 window in back, truck window frame in front
aw11 window in back, truck window frame in front		 aw11 window is about .75-inch higher
aw11 window is about .75-inch higher		 disassembling windrow frame
disassembling windrow frame		 window frame raised .75 inches
window frame raised .75 inches
top extrusion cut and re-attached
top extrusion cut and re-attached		 extrusion extension
extrusion extension		 completed fiberglass extension
completed fiberglass extension		 test fitting window gasket
test fitting window gasket
adding lexan panes
adding lexan panes		 assembled and painted black
assembled and painted black		 sliding window with gasket
sliding window with gasket		 aw11 rear opening
aw11 rear opening
