BOSCH RSR Injectors DV-0460

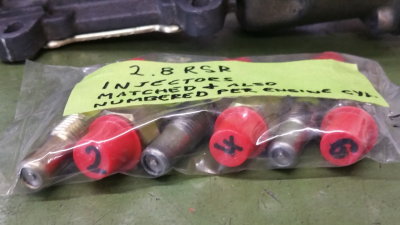

You can only do this at the 'lab'. While the pump is on the dyno and the flow-bench, all the RSR injectors were analyzed https://pbase.com/9146gt/image/166957990 then numbered https://pbase.com/9146gt/image/166957993 and paired to match the fuel-ports on the pump https://pbase.com/9146gt/image/166957985
